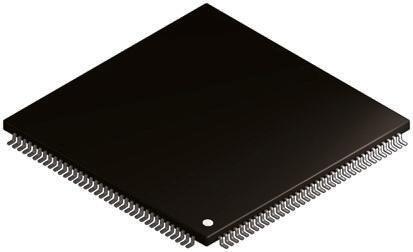

NXP S912ZVFP64F1VLQ, 16bit HCS12Z Microcontroller, 32MHz, 64 kB Flash, 144-Pin LQFP
Product Information
Dimensions:
20 x 20 x 1.4mm
Number of I2C Channels:
1
Number of USART Channels:
0
USB Channels:
0
Width:
20mm
Program Memory Size:
64 kB
Number of PWM Units:
2 x 8/16 bit
RAM Size:
4 kB
Automotive Standard:
AEC-Q100
Data Bus Width:
16bit
Instruction Set Architecture:
MCU
Program Memory Type:
Flash
Package Type:
LQFP
Maximum Frequency:
32MHz
Number of PCI Channels:
0
Number of LIN Channels:
1
Maximum Operating Temperature:
+105 °C
Number of UART Channels:
0
Minimum Operating Temperature:
-40 °C
Maximum Number of Ethernet Channels:
0
Family Name:
S12
Device Core:
HCS12Z
Length:
20mm
Number of ADC Units:
1
Pin Count:
144
Pulse Width Modulation:
1 (4 x 16 bit), 1 (8 x 8 bit)
Mounting Type:
Surface Mount
Number of Ethernet Channels:
0
Height:
1.4mm
Typical Operating Supply Voltage:
5.5 → 18 V
ADCs:
8 x 10 bit
Number of CAN Channels:
1
Number of SPI Channels:
1
Checking for live stock
FAQs
Yes. You can also search S912ZVFP64F1VLQ on website for other similar products.
We accept all major payment methods for all products including ET14055066. Please check your shopping cart at the time of order.
You can order NXP brand products with S912ZVFP64F1VLQ directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Microcontrollers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of NXP S912ZVFP64F1VLQ, 16bit HCS12Z Microcontroller, 32MHz, 64 kB Flash, 144-Pin LQFP. You can also check on our website or by contacting our customer support team for further order details on NXP S912ZVFP64F1VLQ, 16bit HCS12Z Microcontroller, 32MHz, 64 kB Flash, 144-Pin LQFP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14055066 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "NXP" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14055066.
Yes. We ship S912ZVFP64F1VLQ Internationally to many countries around the world.
This is 16bit HCS12Z Microcontroller 32MHz 64 kB Flash 144-Pin LQFP manufactured by NXP. The manufacturer part number is S912ZVFP64F1VLQ. The given dimensions of the product include 20 x 20 x 1.4mm. Moreover, it comprises 1 I2C channels. It contains 0 USART channels. The product integrates 0 USB channels. Furthermore, the product is 20mm wide. In addition, 64 kb is the program memory size. Furthermore, it is composed of 2 x 8/16 bit PWM units. The product has typical 4 kb RAM size. The product complies with automotive standard - aec-q100. Moreover, the data bus width includes 16bit. The instruction set has mcu architecture. It is a flash program memory type. The package is a sort of lqfp. It features 32mhz of maximum frequency. It contains 0 PCI channel . It includes 1 dedicated LIN channels . It has a maximum operating temperature of +105 °c. It is also composed of 0 UART channels. Whereas, the minimum operating temperature of the product is -40 °c. Moreover, the product includes 0 maximum ethernet channels . The product belongs to a family s12. On the other hand, the hcs12z is the device core. Its accurate length is 20mm. It contains 1 ADC units. It contains 144 pins. The product carries 1 (4 x 16 bit), 1 (8 x 8 bit) of pulse width modulation. The product is available in surface mount configuration. It contains 0 dedicated ethernet channels . In addition, the height is 1.4mm. It has 5.5 → 18 v of typical operating supply voltage. The ADCs included 8 x 10 bit. Moreover, it consists of 1 CAN channels. Furthermore, it is composed of 1 SPI channels.
