Image is for illustrative purposes only.
Please refer to product description.

manufacturer logo

Manufacturer : Microchip
Manufacturer Part No : PIC24HJ256GP610A-I/PT
Enrgtech Part No : ET10003077
Product Range : PolySwitch RXEF Series

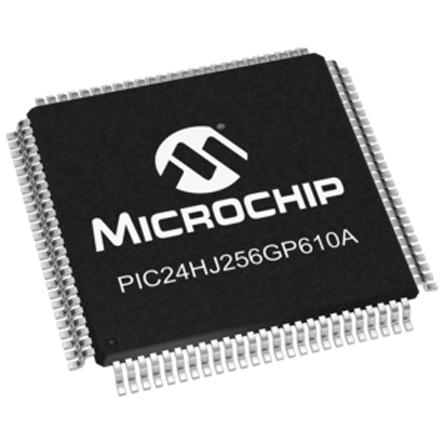

Microchip PIC24HJ256GP610A-I/PT, 16bit PIC Microcontroller, 40MIPS, 256 kB Flash, 100-Pin TQFP

PIC24HJxxxGPx06A/x08A/x10A 16-Bit Microcontrollers PIC24 Microcontrollers

Product Information

Dimensions : 12 x 12 x 1.05mm
Number of I2C Channels : 2
Width : 12mm
Program Memory Size : 256 kB
Number of PWM Units : 1
RAM Size : 16 kB
ADC Channels : 32
Number of Timers : 9
Data Bus Width : 16bit
Instruction Set Architecture : RISC
Program Memory Type : Flash
Package Type : TQFP
Maximum Frequency : 40MIPS
Maximum Operating Temperature : +85 °C
Number of UART Channels : 2
rohs : RoHS Certificate of Compliance
PWM Resolution : 16bit
Minimum Operating Temperature : -40 °C
Family Name : PIC24HJ
Device Core : PIC
ADC Resolution : 10 bit, 12 bit
Timer Resolution : 16bit
Timers : 9 x 16 bit
Number of ADC Units : 2
Pin Count : 100
Pulse Width Modulation : 8 x 16 bit
Mounting Type : Surface Mount
PWM Channels : 8
Length : 12mm
Height : 1.05mm
Typical Operating Supply Voltage : 3 → 3.6 V
ADCs : 2(32 x 10/12 bit)
Number of CAN Channels : 2
Number of SPI Channels : 2

Technical Documents

  • Datasheet (Technical Reference)
  • PIC24HJXXXGPX06A/X08A/X10A Data Sheet (Technical Reference)
  • ESD Control Selection Guide V1 (Technical Reference)

Availability:
238
in stock
Check now

Rate:
  • 119
    +
    £ 4.141

Qty:
