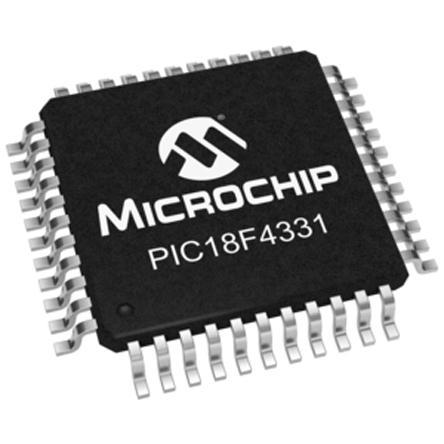

Image is for illustrative purposes only.
Please refer to product description.

manufacturer logo

Manufacturer : Microchip
Manufacturer Part No : PIC18F4331-I/PT
Enrgtech Part No : ET10002129
Product Range : PolySwitch RXEF Series

Microchip PIC18F4331-I/PT, 8bit PIC Microcontroller, 40MHz, 8.192 kB, 256 B Flash, 44-Pin TQFP

PIC18F2331/2431/4331/4431 8-Bit Flash Microcontrollers

Product Information

Dimensions : 10 x 10 x 1.05mm
Number of I2C Channels : 1
Number of USART Channels : 1
Width : 10mm
Program Memory Size : 8.192 kB, 256 B
Number of PWM Units : 2
RAM Size : 768 B
ADC Channels : 9
Number of Timers : 4
Data Bus Width : 8bit
Instruction Set Architecture : RISC
Program Memory Type : Flash
Package Type : TQFP
Maximum Frequency : 40MHz
Maximum Operating Temperature : +85 °C
rohs : RoHS Certificate of Compliance
Family Name : PIC18F
Device Core : PIC
ADC Resolution : 10bit
Timer Resolution : 8 bit, 16 bit
Timers : 1 x 8 bit, 3 x 16 bit
Number of ADC Units : 1
Pin Count : 44
Pulse Width Modulation : 2(CCP)
Mounting Type : Surface Mount
Length : 10mm
Height : 1.05mm
Typical Operating Supply Voltage : 4.2 → 5.5 V
ADCs : 9 x 10 bit
Minimum Operating Temperature : -40 °C
Number of SPI Channels : 1

Technical Documents

  • Datasheet (Technical Reference)
  • PIC18F2331/2431/4331/4431 Data Sheet (Technical Reference)

Availability:
472
in stock
Check now

Rate:
  • 1-9
    +
    £ 4.002
  • 10-24
    +
    £ 3.899
  • 25-99
    +
    £ 3.796

Qty:
