Name: DM164140, Microchip
Brand: Microchip
SKU: ET16927097
Price: 20.79 GBP
Availability: InStock

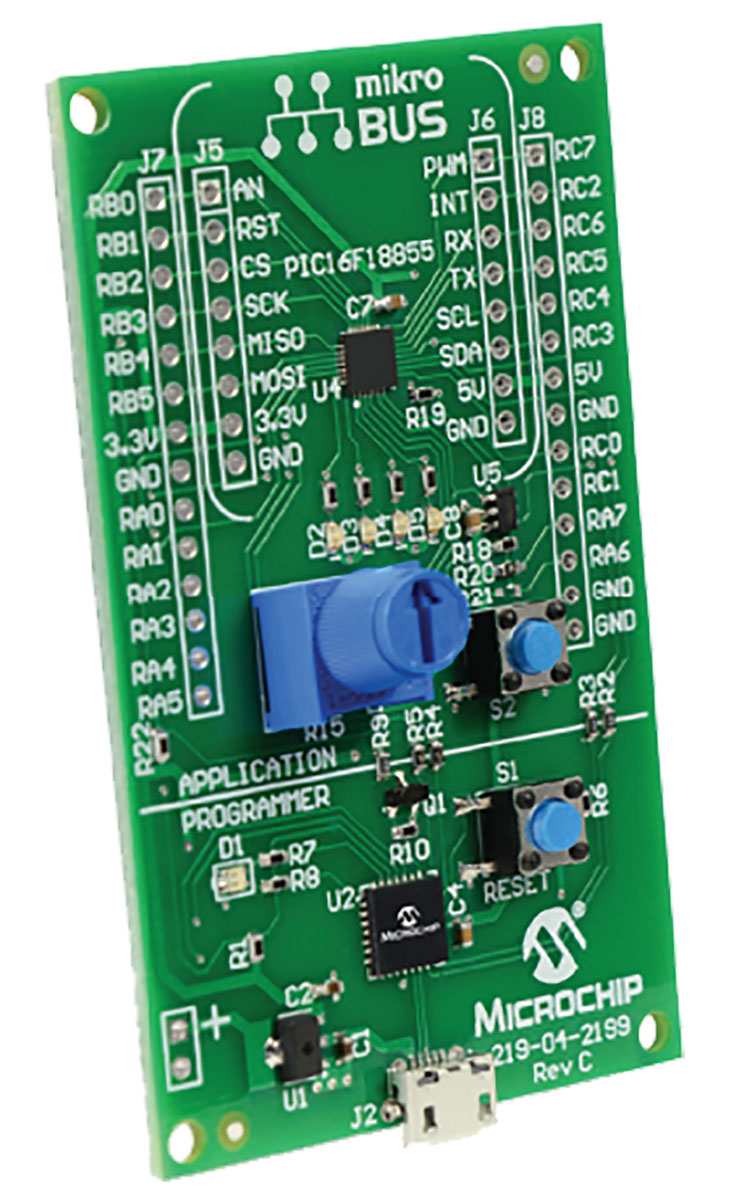

The Microchip DM164140 MPLAB Xpress Development Board is a compact, credit‑card‑sized evaluation platform built around the PIC16F18855 8‑bit microcontroller. It features an integrated drag‑and‑drop USB programmer interface, no extra tools required, and a mikroBUS expansion header supporting over 1,700 Click boards for rapid system expansion. Designed to work seamlessly with the MPLAB Xpress cloud‑based IDE and MPLAB Code Configurator, the board accelerates prototyping and development of embedded solutions in automation, IoT, and industrial applications.

Core Capabilities of the Microchip MPLAB Xpress Development Board

PIC16F18855 onboard MCU offers robust capability for 8‑bit applications.
On‑board drag‑and‑drop USB programmer eliminates the need for external hardware.
mikroBUS header enables rapid prototyping with Click board add‑ons.
Compact form factor supports use in constrained layouts.
Seamless integration with MPLAB Xpress cloud IDE and MCC.
Ideal for embedded development, proof‑of‑concept and educational use.

Engineered for Rapid Embedded Prototyping

This board brings together hardware and software into a streamlined development workflow. The drag‑and‑drop programmer simplifies deployment, while the mikroBUS header provides immediate expansion for connectivity, sensing, or Actuator modules. The cloud‑based MPLAB Xpress IDE enables development from any device, reducing setup time and letting engineers focus on firmware and system design.

Field Applications of the Board

Prototyping embedded systems using PIC microcontrollers.
Educational platforms in university lab courses for MCU programming.
IoT gateway development with Click board connectivity.
Industrial control module proof‑of‑concept for automation systems.
Rapid exploration of firmware features using cloud‑based IDE access.

NOTICE – This product is not for general use by consumers(Technical Reference)

DM164140 User guide(Technical Reference)

DM164140 Pin-out guide(Technical Reference)
