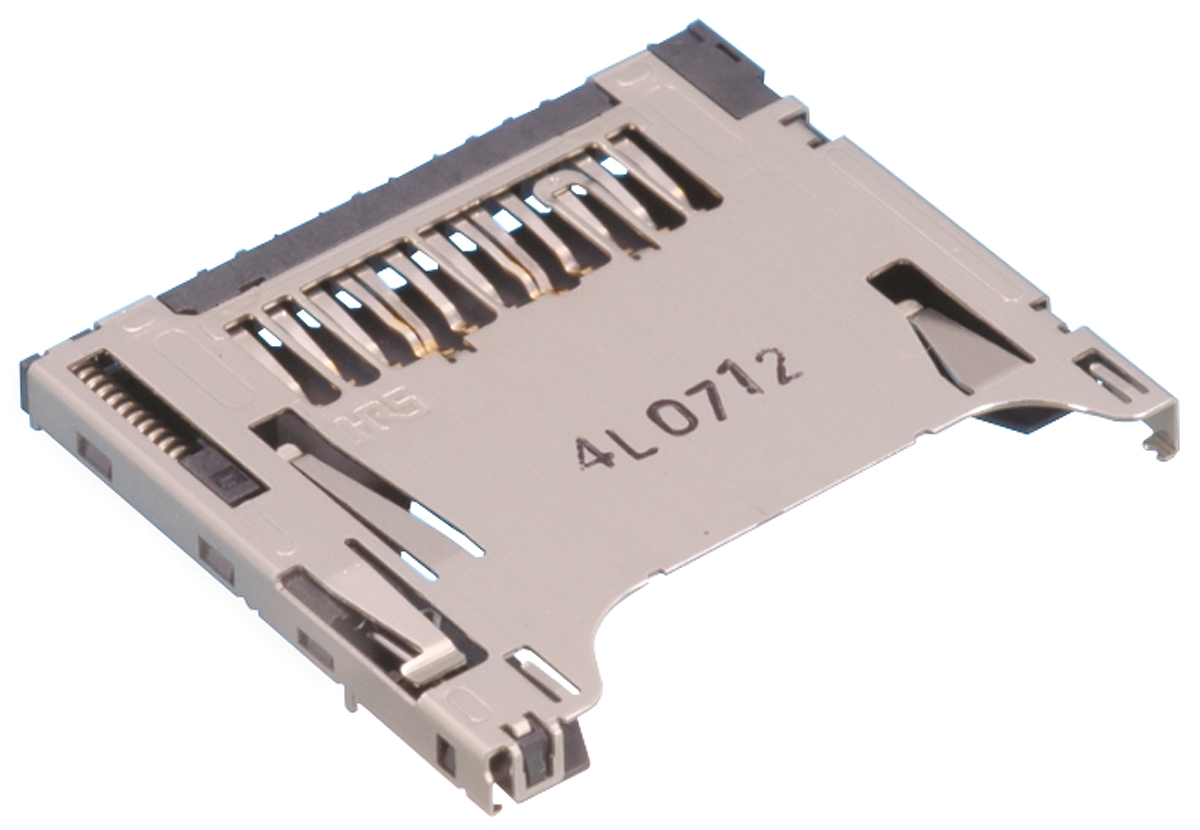

Hirose 11 Way Right Angle Mini SD Memory Card Connector with Solder Termination

DM2B-DSFW-PEJ-S Hirose 11 Way Right Angle Mini SD Memory Card Connector with Solder Termination
Hirose

Product Information

Series:
DM2
Dimensions:
23.2 x 20.6 x 2.2mm
Mounting Type:
Surface Mount
Card Type:
Mini SD
Gender:
Female
Body Orientation:
Right Angle
Termination Method:
Solder
Length:
21.1mm
Housing Material:
Thermoplastic
Width:
23.3mm
Depth:
2.2mm
Number of Rows:
1
Contact Plating:
Gold
Pitch:
1.3mm
Number of Contacts:
11
Maximum Operating Temperature:
+85°C
Minimum Operating Temperature:
-25°C
Contact Material:
Phosphor Bronze
RoHs Compliant
Checking for live stock

This is 11 Way Right Angle Mini SD Memory Card Connector with Solder Termination manufactured by Hirose. The manufacturer part number is DM2B-DSFW-PEJ-S. The product dm2, is a highly preferred choice for users. The given dimensions of the product include 23.2 x 20.6 x 2.2mm. The product is available in surface mount configuration. The product features a mini sd card type. In addition, female is the available "Gender" of the product. It has right angle body orientation. It allows solder termination method. Its accurate length is 21.1mm. The product also features robust thermoplastic housing material. Furthermore, the product is 23.3mm wide. The product comes in 2.2mm depth. It comes in 1 of rows. The high-quality gold is used as contact plating material. Moreover, the product is 1.3mm. The product contains 11 contacts. It has a maximum operating temperature of +85°c. Whereas, the minimum operating temperature of the product is -25°c. The product is made from sturdy phosphor bronze materials.
