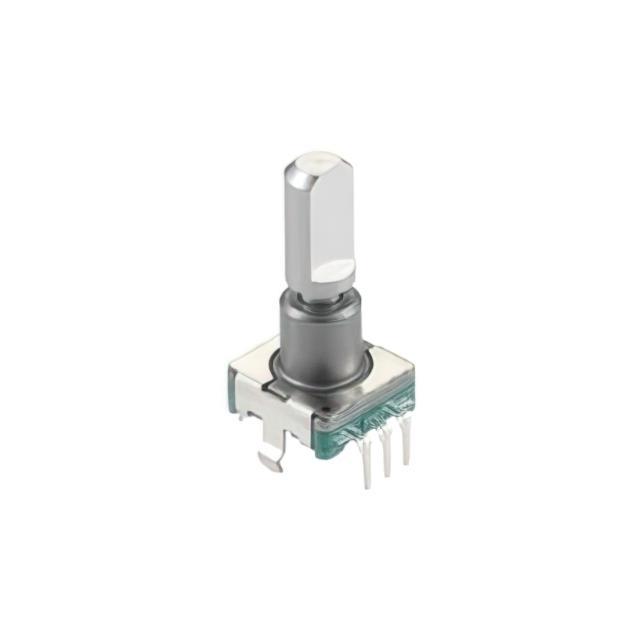

Alps Alpine 9 Pulse Incremental Mechanical Rotary Encoder with a 6 mm Flat Shaft (Not Indexed), Through Hole
Product Information
Shaft Diameter:
6 mm
Pulses Per Revolution:
9
Mounting Type:
Through Hole
Mounting Hole Diameter:
2.6 x 1.5 mm, 1 mm
Encoder Reading:
Incremental
Shaft Length:
20mm
Shaft Style:
Flat
Encoder Signal:
Digital Square Wave
Index Output:
Not Indexed
RoHS Status:
ROHS3 Compliant
Termination Style:
PC Pin
Moisture Sensitivity Level (MSL):
1 (Unlimited)
DigiKey Programmable:
-
Built in Switch:
Yes
Output Type:
Quadrature (Incremental)
Package:
Tray
Encoder Type:
Incremental
Detent:
Yes
standardLeadTime:
18 Weeks
Pulses per Revolution:
9
Rotational Life (Cycles Min):
15K
Orientation:
Vertical
Mounting Type:
PCB, Through Hole
Series:
EC11E
Voltage - Supply:
5V
Actuator Type:
4.5mm Dia Flatted End
Checking for live stock
FAQs
Yes. You can also search EC11E09244AQ on website for other similar products.
We accept all major payment methods for all products including ET18214971. Please check your shopping cart at the time of order.
You can order Alps Alpine brand products with EC11E09244AQ directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Mechanical Rotary Encoders category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Alps Alpine 9 Pulse Incremental Mechanical Rotary Encoder with a 6 mm Flat Shaft (Not Indexed), Through Hole. You can also check on our website or by contacting our customer support team for further order details on Alps Alpine 9 Pulse Incremental Mechanical Rotary Encoder with a 6 mm Flat Shaft (Not Indexed), Through Hole.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET18214971 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Alps Alpine" products on our website by using Enrgtech's Unique Manufacturing Part Number ET18214971.
Yes. We ship EC11E09244AQ Internationally to many countries around the world.
This is 9 Pulse Incremental Mechanical Rotary Encoder with a 6 mm Flat Shaft (Not Indexed) Through Hole manufactured by Alps Alpine. The manufacturer part number is EC11E09244AQ. The diameter of the shaft is 6 mm. It exhibits 9 pulses per resolution . The product is available in through hole configuration. The given diameter of mounting hole is 2.6 x 1.5 mm, 1 mm. Moreover, it contains an encoder of incremental reading . The shaft is 20mm long. It has a flat style shaft . It has a digital square wave encoder signal . Moreover, its output is not indexed . The product is rohs3 compliant. Moreover, it has pc pin terminal style. Its typical moisture sensitivity level is 1 (unlimited). Built in Switch Info: yes. Furthermore, it has aquadrature (incremental) output. It is shipped in tray package . The product is incremental encoder. Detent Features: yes. It has a long 18 weeks standard lead time. Provide 9 pulses per revolution. The minimal rotational life of the product includes 15k. The product has a vertical orientation. The product is available in pcb, through hole configuration. The product ec11e, is a highly preferred choice for users. It has optimum voltage supply of 5v. The product carries 4.5mm dia flatted end actuator.
