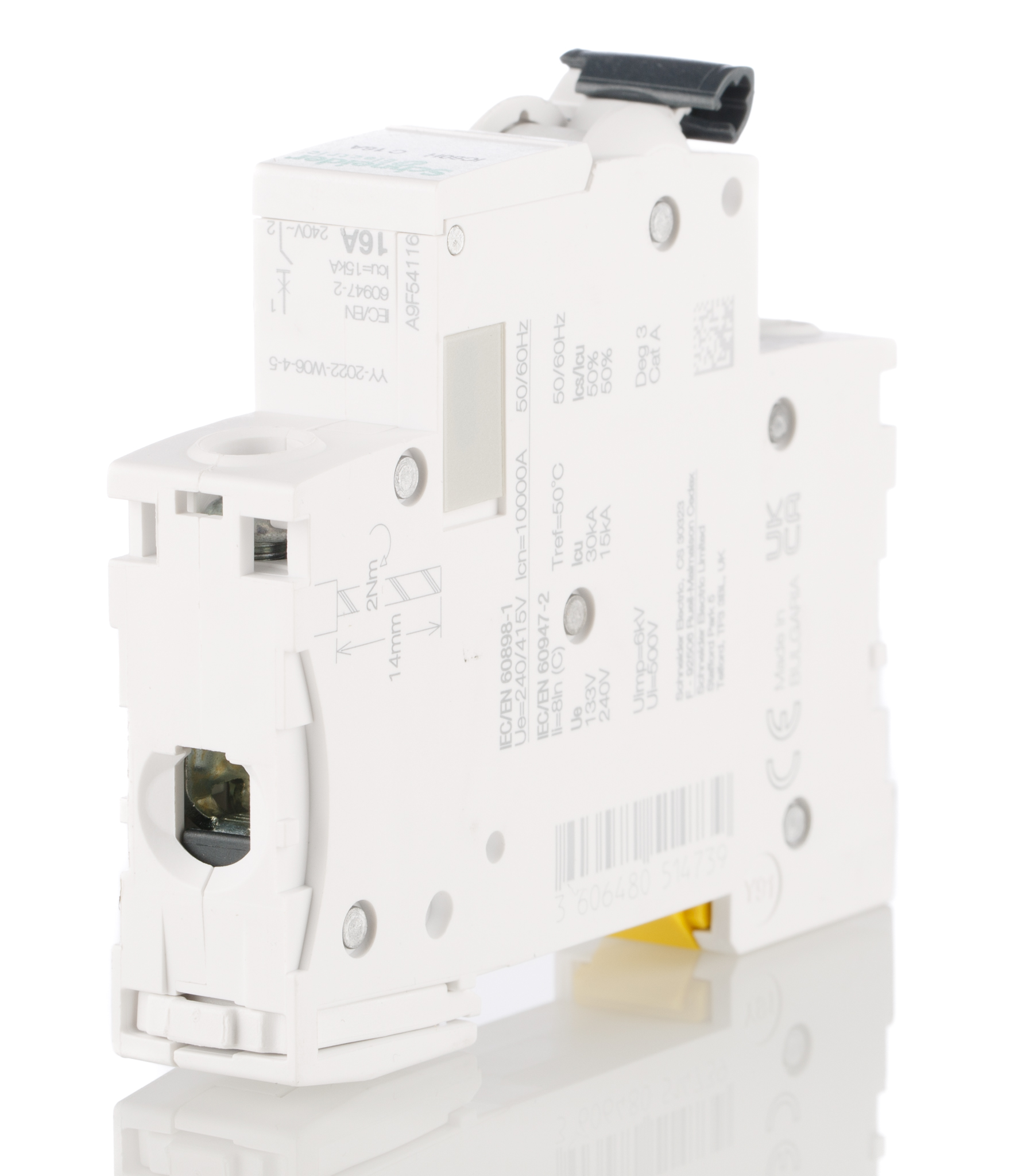

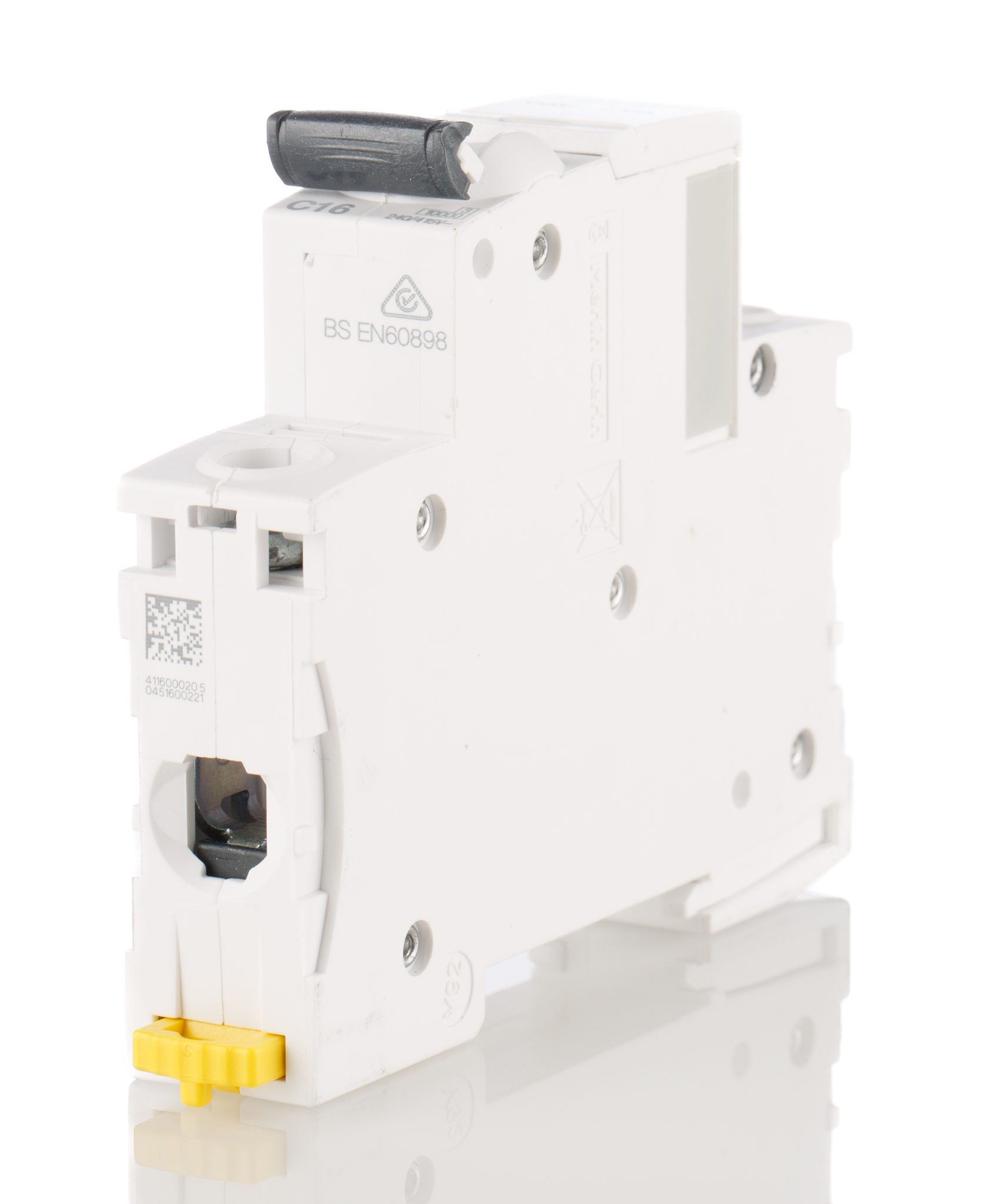

Schneider Electric Acti 9 iC60H MCB Mini Circuit Breaker 1P, 16 A, 10 KA, Curve C

A9F54116 Schneider Electric Acti 9 iC60H MCB Mini Circuit Breaker 1P, 16 A, 10 KA, Curve C
A9F54116
A9F54116
Schneider Electric

Product Information

Better World Verification:
Green Premium
Better World Product:
Yes
Current Rating:
16A
Circuit Breaker Type:
MCB
Tripping Mechanism:
Thermal-Magnetic
Series:
iC60H
Length:
85mm
Model Number:
iC60H 1P 16A C
Rated DC Voltage:
72 V, 12 → 48V
Mounting Style:
DIN Rail Mount
Width:
18mm
Depth:
78.5mm
Rated AC Voltage:
100 → 133 V, 12 → 60 V, 220 → 240V
Breaking Capacity at Maximum Voltage Rating:
10 kA
Range:
Acti 9
Terminal Contact Type:
Screw
Tripping Characteristics:
Type C
Number of Poles:
1P
Reset Actuator Type:
Rocker Switch
RoHs Compliant
Checking for live stock

Schneider Electric | Acti9 iC60H | Mini Circuit Breakers

Schneider Electric's Acti9 line of MCBs offers superior circuit protection, especially when preventing short circuits and overload currents. Schneider has extensively tested these MCBs to ensure that they adhere to regulations like IEC/EN 60898 and 60947-2. These MCBs may perform very well in contaminated situations and are frequently utilized in industrial or commercial buildings.

Features and benefits

  • These tiny consumer units are simple to install, single clip-on to Din Rail, and easy to wire, simplifying your circuit system.
  • Designed ergonomically with strong connections and shutters for IP20B terminals.
  • For safer use and maintenance work on electrical circuits, Schneider offers "VisiSafe."
  • Guaranteed complete safety of circuit protection.
  • Schneider "VisiTrip" for simpler MCB outgoer fault detection. By shielding the equipment before any more electrical issues arise, can significantly save the time required for intervention.
  • 1P (number of protected poles).
  • Nominal currents between one and sixty-three amps.

Complete compatibility with MCBs and RCDs from Acti 9.

  • Insulation voltage is 500 V, with an operating voltage of up to 440 V ac.
  • There are available additional add-on earth leakage prevention devices. You will have improved service continuity as a result.
  • Premium level Schneider Green product.
  • Reliable ratings & Safety features
  • IP20 complies with IEC 60529. Protection from solid items up to 12 mm in diameters, such as fingers and tiny tools.
  • Pollution degree level 3 in accordance with EN/IEC 60947-2 and EN/IEC 60898-1
  • -35 to 70 °C is the operating temperature.
  • ability can be locked, adding further security.

Typical Applications

  • Motor circuit protection and DC current circuit protection.
  • Network and environment pollution.
  • Any kind of circuit in commercial and industrial structures.

What are the most used different types of Mini Circuit Breakers?

Curve B:

Tripping occurs at 3 to 5 times the rated current.

Applications:

Safety for people, particularly long connections, and generators.

Curve C:

Tripping occurs 5–10 times the rated current

Applications:

General applications and circuit protection

Curve D:

Tripping occurs at 10 to 14 times the rated current

Applications:

Safeguarding welders, transformers, motors, and high surge circuits

A9F54116 Acti9 Disbo iC60 MCB Miniature Circuit Breaker IP20.

This model features an instantaneous tripping curve type C that trips at a rate between five and ten times its rated current. 10 kA of breaking power and 1 pole breaker.

  • IC60H, a short product name
  • One protected pole alone.
  • Network AC.
  • C-shaped curve.
  • According to EN/IEC 60947-2, Category A.
  • 240 V AC, 50/60 Hz, rated working voltage.
  • An indication of the contact position.
  • Adjust the control type.
  • Trip signal.
  • Mounting using clips (DIN rail).
  • 2x9mm Pitches each.
  • The White MCB.
  • 0.125 kg in weight.
  • Able to be padlocked
  • IEC 60529 and IP20.

Sustainability

The outstanding features you have ever seen are as follows:

  • Mechanical 20,000 Cycles.
  • Electrical 10,000 Cycles.

Terminal connections

  • Single terminal (top or bottom) 1…25 mm² rigid.
  • Single terminal (top or bottom) 1…16 mm² flexible.

pdf icon
Datasheet A9F54116(Technical Reference)
pdf icon
Product Environmental Profile(Technical Reference)
pdf icon
Multi9 to Acti9 Reference Guide Data Sheet(Technical Reference)
pdf icon
Green Premium Ecolabel(Technical Reference)

Reviews

  • Be the first to review.
Don’t hesitate to ask questions for better clarification.

FAQs

Yes. You can also search A9F54116 on website for other similar products.
We accept all major payment methods for all products including ET17548407. Please check your shopping cart at the time of order.
You can order Schneider Electric brand products with A9F54116 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in MCBs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Schneider Electric Acti 9 iC60H MCB Mini Circuit Breaker 1P, 16 A, 10 KA, Curve C. You can also check on our website or by contacting our customer support team for further order details on Schneider Electric Acti 9 iC60H MCB Mini Circuit Breaker 1P, 16 A, 10 KA, Curve C.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET17548407 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Schneider Electric" products on our website by using Enrgtech's Unique Manufacturing Part Number ET17548407.
Yes. We ship A9F54116 Internationally to many countries around the world.
