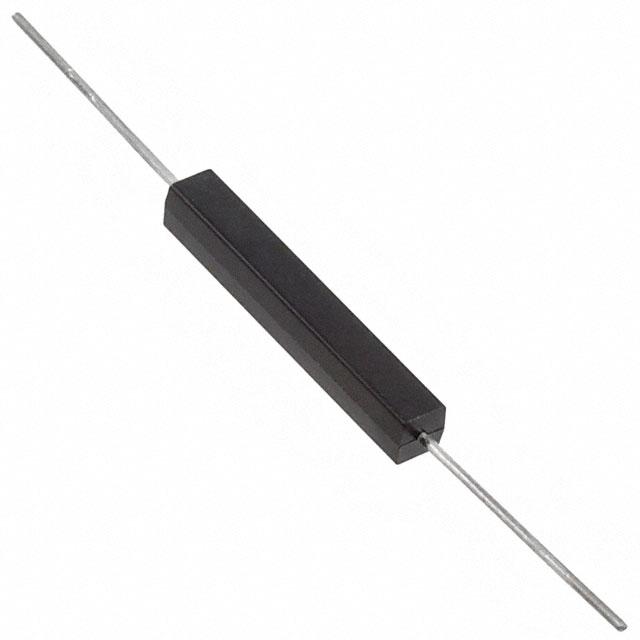

Littelfuse Inc. 59165-1-S-00-A

59165-1-S-00-A Littelfuse Inc.
Littelfuse Inc.

Product Information

RoHS Status:
ROHS3 Compliant
Termination Style:
Power - Rated:
0.3 pF
Operating Temperature:
-40°C ~ 105°C
Height Above Board:
Molded Body Reed
Voltage - Switching DC:
200 V
Length - Overall:
1.590" (40.39mm)
Release Range:
REACH Status:
REACH Unaffected
Voltage - Switching AC:
140 V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
1 ms
15 Weeks
Size - Body:
0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm)
Current - Switching:
350mA (AC), 500mA (DC)
Mounting Type:
Through Hole
Current - Carry:
800mA (DC)
Release Time:
1 ms
Operate Range:
10 ~ 15AT
Checking for live stock

This is manufactured by Littelfuse Inc.. The manufacturer part number is 59165-1-S-00-A. It is assigned with possible HTSUS value of 8536.50.9065. The product is rohs3 compliant. Moreover, it has axial terminal style. It features a power rating of 10w. It provides a 0.3 pf of capacitance value. The product has -40°c ~ 105°c operating temperature range. It comes in molded body reed configuration. Features 200 v of switching DC voltage. The product has an integral 1.590" (40.39mm) overall length. In addition, it is reach unaffected. While 140 v is the AC switching voltage. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). The operating time of the product is 1 ms. It has an integral spst-no circuit. It has a long 15 weeks standard lead time. Has a body size of 0.630" l x 0.095" w x 0.095" h (16.00mm x 2.40mm x 2.40mm). The typical switching current is 350ma (ac), 500ma (dc). The product is available in through hole configuration. The product 59165, is a highly preferred choice for users. The product has 800ma (dc) carry current. While 1 ms is its release time. It operates at a range of 10 ~ 15at. The product is designated with the ear99 code number.

pdf icon
RoHS 3 Cert 59165-1-S-00-A(Environmental Information)
pdf icon
Sensor Plant Transfer 21/Jul/2015(PCN Assembly/Origin)
pdf icon
59165 Series Datasheet(Datasheets)
pdf icon
Reed Switch Selection Guide(Datasheets)
pdf icon
Modifying Reed Switches(Other Related Documents)
