Product Information

Manufacturer Standard Lead Time:
33 Weeks
Detailed Description:
Molded Body Reed Switch SPST-NO 10 ~ 15AT Operate Range 10W 350mA (AC), 500mA (DC) 140V Surface Mount
Termination Style:
Gull Wing
Power - Rated:
10W
Capacitance:
0.3pF
Operating Temperature:
-40°C ~ 105°C
Height Above Board:
0.099" (2.52mm)
Type:
Molded Body
Length - Overall:
0.795" (20.19mm)
Voltage - Switching DC:
200V
Manufacturer:
Littelfuse Inc.
Voltage - Switching AC:
140V
Operate Time:
1ms
Circuit:
SPST-NO

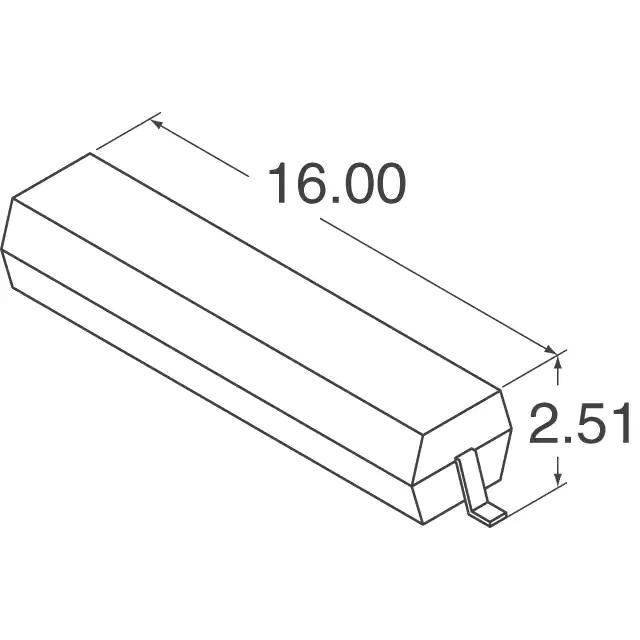

Size - Body:
0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm)
Current - Switching:
350mA (AC), 500mA (DC)
Mounting Type:
Surface Mount
Series:
59165
Current - Carry:
800mA (DC)
Release Time:
1ms
Packaging:
Cut Tape (CT)
Customer Reference:
Operate Range:
10 ~ 15AT
Checking for live stock

This is manufactured by Littelfuse Inc.. The manufacturer part number is 59165-1-S-00-D. It has typical 33 weeks of manufacturer standard lead time. It features molded body reed switch spst-no 10 ~ 15at operate range 10w 350ma (ac), 500ma (dc) 140v surface mount. Moreover, it has gull wing terminal style. It features a power rating of 10w. It provides a 0.3pf of capacitance value. The product has -40°c ~ 105°c operating temperature range. It is 0.099" (2.52mm) high above board. It comes in molded body configuration. The product has an integral 0.795" (20.19mm) overall length. Features 200v of switching DC voltage. The littelfuse inc.'s product offers user-desired applications. While 140v is the AC switching voltage. The operating time of the product is 1ms. It has an integral spst-no circuit. Has a body size of 0.630" l x 0.095" w x 0.095" h (16.00mm x 2.40mm x 2.40mm). The typical switching current is 350ma (ac), 500ma (dc). The product is available in surface mount configuration. The product 59165, is a highly preferred choice for users. The product has 800ma (dc) carry current. While 1ms is its release time. In addition, cut tape (ct) is the available packaging type of the product. It operates at a range of 10 ~ 15at.
