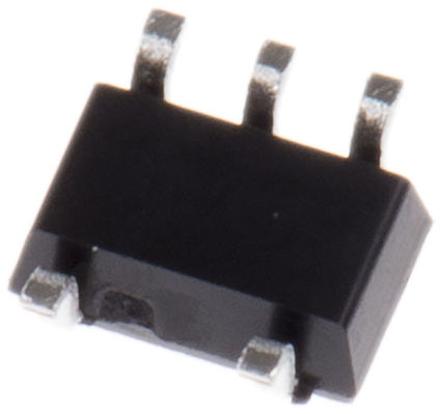

Nexperia 74HC1G86GW,125, 2-Input XOR Logic Gate, 2 → 6 V, 5-Pin TSSOP
Product Information
Dimensions:
2.25 x 1.35 x 1mm
Logic Family:
HC
Width:
1.35mm
Input Type:
CMOS
Maximum Low Level Output Current:
2.6mA
Maximum High Level Output Current:
-2.6mA
Maximum Propagation Delay Time @ Maximum CL:
135ns
Minimum Operating Supply Voltage:
2 V
Output Type:
Current
Package Type:
TSSOP
Maximum Operating Temperature:
+125 °C
Number of Inputs per Gate:
2
Length:
2.25mm
Pin Count:
5
Maximum Operating Supply Voltage:
6 V
Mounting Type:
Surface Mount
Logic Function:
XOR
Height:
1mm
Minimum Operating Temperature:
-40 °C
Schmitt Trigger Input:
No
Number of Elements:
1
Propagation Delay Test Condition:
50pF
Checking for live stock
FAQs
Yes. You can also search 74HC1G86GW,125 on website for other similar products.
We accept all major payment methods for all products including ET16913291. Please check your shopping cart at the time of order.
You can order Nexperia brand products with 74HC1G86GW,125 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Logic Gates category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Nexperia 74HC1G86GW,125, 2-Input XOR Logic Gate, 2 → 6 V, 5-Pin TSSOP. You can also check on our website or by contacting our customer support team for further order details on Nexperia 74HC1G86GW,125, 2-Input XOR Logic Gate, 2 → 6 V, 5-Pin TSSOP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16913291 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Nexperia" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16913291.
Yes. We ship 74HC1G86GW,125 Internationally to many countries around the world.
This is 2-Input XOR Logic Gate 2 → 6 V 5-Pin TSSOP manufactured by Nexperia. The manufacturer part number is 74HC1G86GW,125. The given dimensions of the product include 2.25 x 1.35 x 1mm. The logic family is hc. Furthermore, the product is 1.35mm wide. It carries cmos input type. On the other hand, it is featured with 2.6ma of max. low level output current. While a -2.6ma of maximum high level output current. It provides up to 135ns maximum propagation delay time. While its minimum operating supply voltage is 2 v. Furthermore, it has acurrent output. The package is a sort of tssop. It has a maximum operating temperature of +125 °c. It contains 2 inputs per gate . Its accurate length is 2.25mm. It contains 5 pins. It has 6 v maximum operating supply voltage. The product is available in surface mount configuration. The primary function of logic includes xor. In addition, the height is 1mm. Whereas, the minimum operating temperature of the product is -40 °c. Schmitt Trigger Input - no. It carries 1 elements. Features 50pf of propagation delay test condition.
