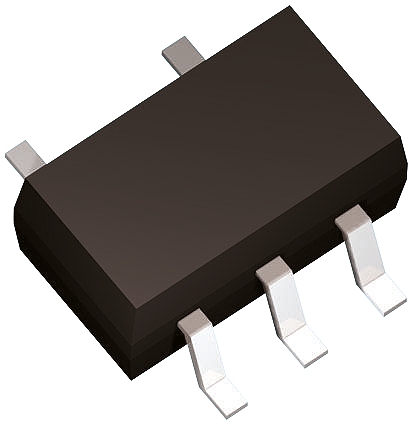

This is 2-Input NAND Logic Gate 5-Pin SC-74A manufactured by Nexperia. The manufacturer part number is 74LVC1G00GV,125. The given dimensions of the product include 3.1 x 1.7 x 1mm. The logic family is lvc. Furthermore, the product is 1.7mm wide. It carries ttl input type. On the other hand, it is featured with 32ma of max. low level output current. While a -32ma of maximum high level output current. It provides up to 7.5 ns @ 50 pf maximum propagation delay time. While its minimum operating supply voltage is 1.65 v. Furthermore, it has asingle ended output. The package is a sort of sc-74a. It has a maximum operating temperature of +125 °c. It contains 2 inputs per gate . Its accurate length is 3.1mm. It contains 5 pins. It has 5.5 v maximum operating supply voltage. The product is available in surface mount configuration. The primary function of logic includes nand. In addition, the height is 1mm. Whereas, the minimum operating temperature of the product is -40 °c. Schmitt Trigger Input - no. It carries 1 elements. Features 50pf of propagation delay test condition.
74LVC1G00GV Single 2-input NAND Gate Data Sheet(Technical Reference)
ESD Control Selection Guide V1(Technical Reference)
