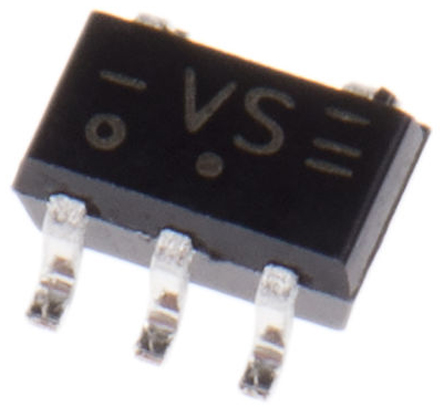

Nexperia 74AUP1G02GW,125, 2-Input NOR Schmitt Trigger Logic Gate, 5-Pin TSSOP

74AUP1G02GW-125 Nexperia 74AUP1G02GW,125, 2-Input NOR Schmitt Trigger Logic Gate, 5-Pin TSSOP
74AUP1G02GW,125
Nexperia

Product Information

Dimensions:
2.25 x 1.35 x 1mm
Logic Family:
AUP
Width:
1.35mm
Input Type:
Schmitt Trigger
Maximum Low Level Output Current:
4mA
Maximum High Level Output Current:
-4mA
Maximum Propagation Delay Time @ Maximum CL:
24.7 ns @ 30 pF
Minimum Operating Supply Voltage:
0.8 V
Output Type:
Single Ended
Package Type:
TSSOP
Maximum Operating Temperature:
+125 °C
Number of Inputs per Gate:
2
Length:
2.25mm
Pin Count:
5
Maximum Operating Supply Voltage:
3.6 V
Mounting Type:
Surface Mount
Logic Function:
NOR
Height:
1mm
Minimum Operating Temperature:
-40 °C
Schmitt Trigger Input:
Yes
Number of Elements:
1
Propagation Delay Test Condition:
30pF
RoHs Compliant
Checking for live stock

This is 2-Input NOR Schmitt Trigger Logic Gate 5-Pin TSSOP manufactured by Nexperia. The manufacturer part number is 74AUP1G02GW,125. The given dimensions of the product include 2.25 x 1.35 x 1mm. The logic family is aup. Furthermore, the product is 1.35mm wide. It carries schmitt trigger input type. On the other hand, it is featured with 4ma of max. low level output current. While a -4ma of maximum high level output current. It provides up to 24.7 ns @ 30 pf maximum propagation delay time. While its minimum operating supply voltage is 0.8 v. Furthermore, it has asingle ended output. The package is a sort of tssop. It has a maximum operating temperature of +125 °c. It contains 2 inputs per gate . Its accurate length is 2.25mm. It contains 5 pins. It has 3.6 v maximum operating supply voltage. The product is available in surface mount configuration. The primary function of logic includes nor. In addition, the height is 1mm. Whereas, the minimum operating temperature of the product is -40 °c. Schmitt Trigger Input - yes. It carries 1 elements. Features 30pf of propagation delay test condition.
