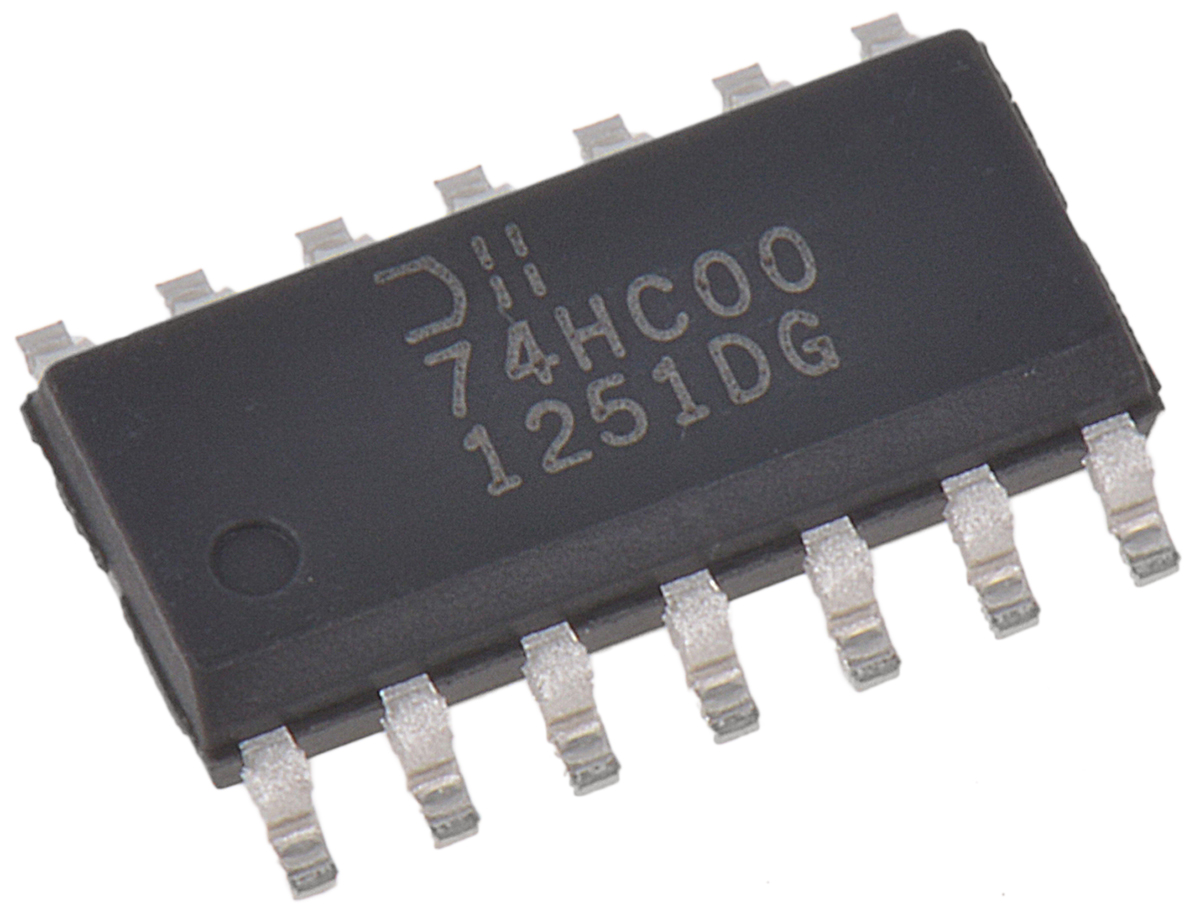

DiodesZetex 74HC00S14-13, Quad 2-Input NAND Schmitt Trigger Logic Gate, 2 → 6 V, 14-Pin SOIC

74HC00S14-13 DiodesZetex , Quad 2-Input NAND Schmitt Trigger Logic Gate, 2 → 6 V, 14-Pin SOIC
74HC00S14-13
74HC00S14-13
74HC00S14-13 DiodesZetex , Quad 2-Input NAND Schmitt Trigger Logic Gate, 2 → 6 V, 14-Pin SOIC
DiodesZetex

Product Information

Logic Family:
HC
Width:
3.99 mm
Input Type:
Schmitt Trigger
Height:
1.48mm
Automotive Standard:
No
Maximum Low Level Output Current:
5.2mA
Maximum High Level Output Current:
-4mA
Output Type:
Push Pull
Minimum Supply Voltage:
2V
Package Type:
SOIC
Product Type:
Logic Gate
Maximum Operating Temperature:
125°C
Number of Inputs per Gate:
2
Length:
8.74mm
Standards/Approvals:
No
Pin Count:
14
Mount Type:
Surface
Maximum Propagation Delay Time @ CL:
23ns
Logic Function:
NAND
Maximum Supply Voltage:
6V
Minimum Operating Temperature:
-40°C
Schmitt Trigger Input:
Yes
Number of Elements:
4
RoHs Compliant
Checking for live stock

This is Quad 2-Input NAND Schmitt Trigger Logic Gate 2 → 6 V 14-Pin SOIC manufactured by DiodesZetex. The manufacturer part number is 74HC00S14-13. The logic family is hc. Furthermore, the product is 3.99 mm wide. It carries schmitt trigger input type. In addition, the height is 1.48mm. The product complies with automotive standard - no. On the other hand, it is featured with 5.2ma of max. low level output current. While a -4ma of maximum high level output current. Furthermore, it has apush pull output. It has a minimum 2v supply voltage . The package is a sort of soic. logic gate is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 125°c. It contains 2 inputs per gate . Its accurate length is 8.74mm. It contains 14 pins. It has a surface type mount . The primary function of logic includes nand. The product requires a maximum 6v supply voltage . Whereas, the minimum operating temperature of the product is -40°c. Schmitt Trigger Input - yes. It carries 4 elements.
