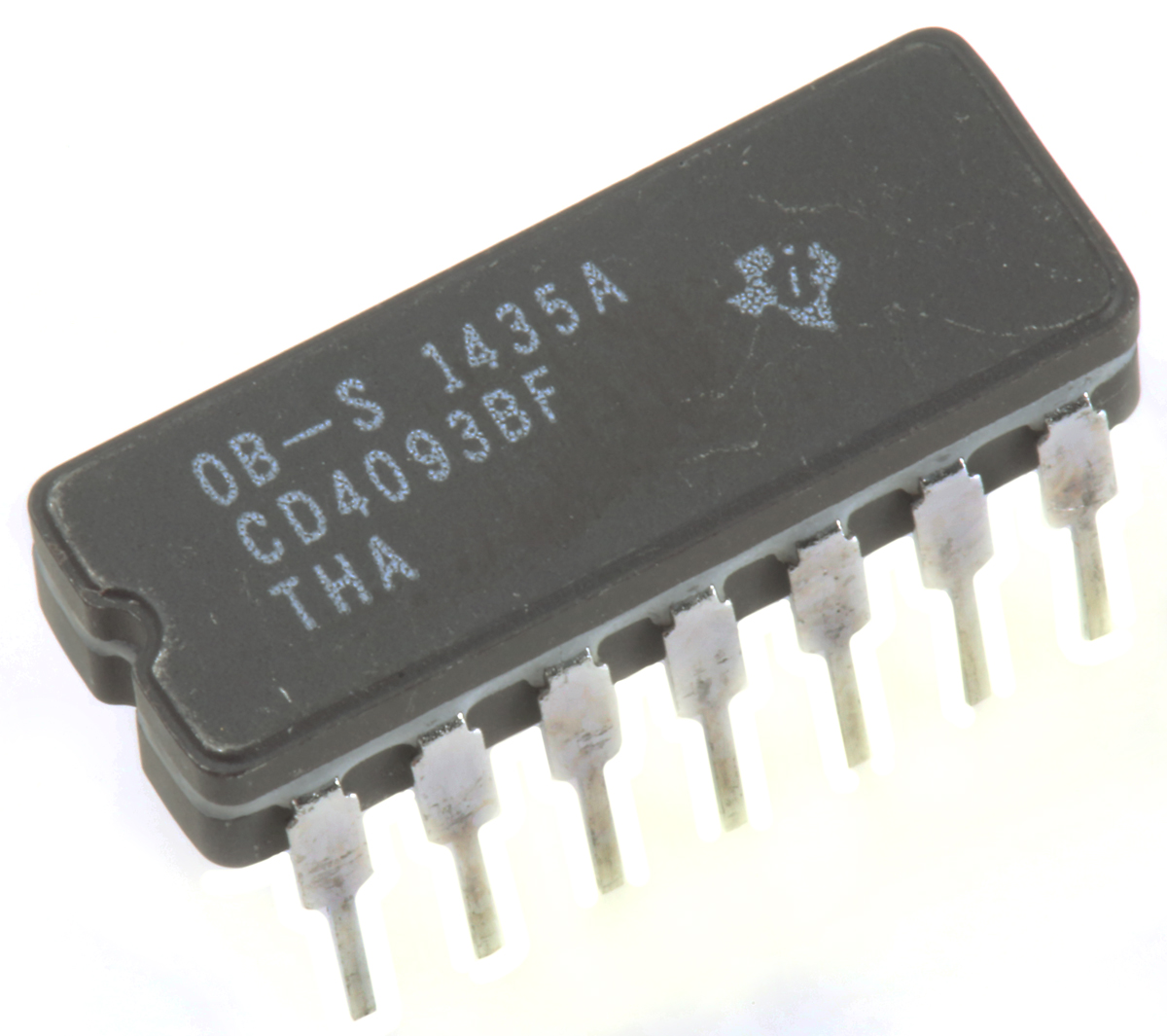

Texas Instruments CD4093BF, Quad 2-Input NAND Schmitt Trigger Logic Gate, 3 → 18 V, 14-Pin CDIP
Product Information
Dimensions:
19.94 x 7.62 x 3.56mm
Logic Family:
4000
Width:
7.62mm
Input Type:
CMOS
Maximum Low Level Output Current:
4.2mA
Maximum High Level Output Current:
-4.2mA
Maximum Propagation Delay Time @ Maximum CL:
380 ns @ 50 pF
Minimum Operating Supply Voltage:
3 V
Output Type:
CMOS
Package Type:
CDIP
Maximum Operating Temperature:
+125 °C
Number of Inputs per Gate:
2
Length:
19.94mm
Pin Count:
14
Maximum Operating Supply Voltage:
18 V
Mounting Type:
Through Hole
Logic Function:
NAND
Height:
3.56mm
Minimum Operating Temperature:
-55 °C
Schmitt Trigger Input:
Yes
Number of Elements:
4
Propagation Delay Test Condition:
50pF
Number of Inputs:
2
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Package / Case:
14-CDIP (0.300", 7.62mm)
Input Logic Level - Low:
2.8V ~ 9.6V
Input Logic Level - High:
3.6V ~ 12.7V
Current - Quiescent (Max):
20 µA
Max Propagation Delay @ V, Max CL:
130ns @ 15V, 50pF
Package:
Tube
Moisture Sensitivity Level (MSL):
Not Applicable
Number of Circuits:
4
Features:
Schmitt Trigger
Mounting Type:
Through Hole
Series:
4000B
Logic Type:
NAND Gate
Supplier Device Package:
14-CDIP
Voltage - Supply:
3V ~ 18V
Current - Output High, Low:
6.8mA, 6.8mA
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search CD4093BF on website for other similar products.
We accept all major payment methods for all products including ET16711731. Please check your shopping cart at the time of order.
You can order Texas Instruments brand products with CD4093BF directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Logic Gates category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Texas Instruments CD4093BF, Quad 2-Input NAND Schmitt Trigger Logic Gate, 3 → 18 V, 14-Pin CDIP. You can also check on our website or by contacting our customer support team for further order details on Texas Instruments CD4093BF, Quad 2-Input NAND Schmitt Trigger Logic Gate, 3 → 18 V, 14-Pin CDIP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16711731 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Texas Instruments" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16711731.
Yes. We ship CD4093BF Internationally to many countries around the world.
This is Quad 2-Input NAND Schmitt Trigger Logic Gate 3 → 18 V 14-Pin CDIP manufactured by Texas Instruments. The manufacturer part number is CD4093BF. The given dimensions of the product include 19.94 x 7.62 x 3.56mm. The logic family is 4000. Furthermore, the product is 7.62mm wide. It carries cmos input type. On the other hand, it is featured with 4.2ma of max. low level output current. While a -4.2ma of maximum high level output current. It provides up to 380 ns @ 50 pf maximum propagation delay time. While its minimum operating supply voltage is 3 v. Furthermore, it has acmos output. The package is a sort of cdip. It has a maximum operating temperature of +125 °c. It contains 2 inputs per gate . Its accurate length is 19.94mm. It contains 14 pins. It has 18 v maximum operating supply voltage. The product is available in through hole configuration. The primary function of logic includes nand. In addition, the height is 3.56mm. Whereas, the minimum operating temperature of the product is -55 °c. Schmitt Trigger Input - yes. It carries 4 elements. Features 50pf of propagation delay test condition. The product consists of 2 inputs. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. The product has -55°c ~ 125°c operating temperature range. Moreover, the product comes in 14-cdip (0.300", 7.62mm). Product with 2.8v ~ 9.6v input logic level - low. Features input logic level - high of 3.6v ~ 12.7v. It has a maximum quiescent current of 20 µa. The maximum propagation delay at given voltage includes 130ns @ 15v, 50pf. It is shipped in tube package . Its typical moisture sensitivity level is not applicable. It integrates 4 circuits. The splendid features of the product include schmitt trigger. The product 4000b, is a highly preferred choice for users. The product is a nand gate logic type. 14-cdip is the supplier device package value. It has optimum voltage supply of 3v ~ 18v. The high and low output current of the product is 6.8ma, 6.8ma. The product is designated with the ear99 code number.
