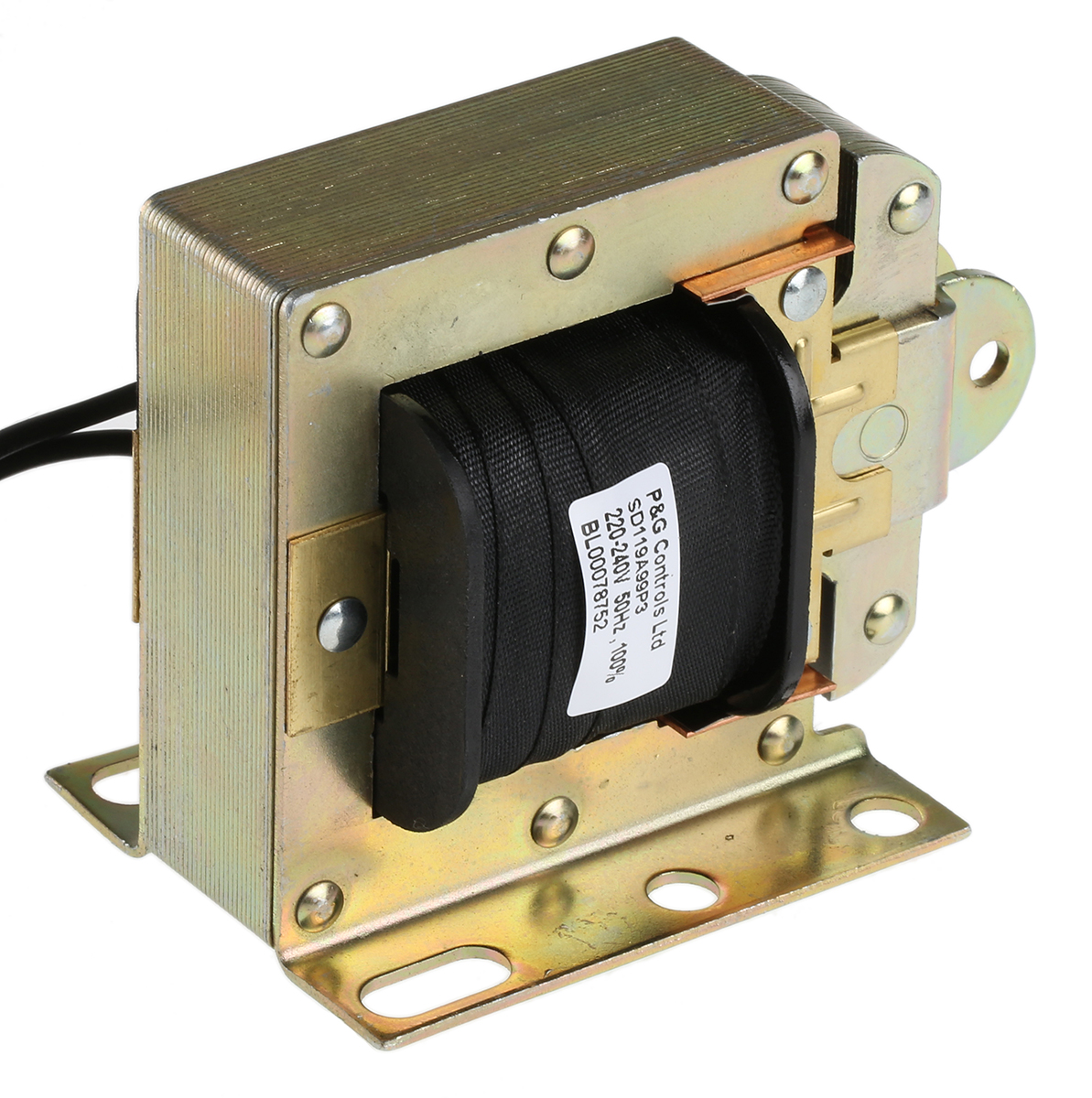

Mechetronics SD119A99P3, Pull-Action Linear Solenoid, 240 V ac

The Mechetronics SD119A99P3 is a pull-action AC laminated solenoid that produces linear mechanical movement when energised. It operates on 240 V AC and delivers a controlled pulling force over a 34.2 mm stroke. This type of solenoid is typically used where a simple, repeatable pulling motion is required to actuate a mechanism. It is built for applications where reliability matters more than speed or complexity, and where the solenoid may be energised repeatedly during normal operation.

Standout Features of the Mechetronics SD119A99P3 Pull-Action Linear Solenoid

When power is applied, the laminated core produces a magnetic field pulling the plunger inward to its full stroke length. Once power is removed, the plunger returns to its original position, usually with the help of a spring or external mechanical force.

• Pull-action linear movement.
• 34.2 mm usable stroke.
• AC laminated core design.
• Operates at 240 V AC.

Electrical and Mechanical Characteristics

This solenoid consumes 28 VA, placing it in the moderate-duty range for industrial and commercial equipment. It is typically used where continuous precision is not critical, but a consistent mechanical response is required.

Broad Application Range

The SD119A99P3 is often found in:

• Industrial machinery and automation equipment
• Electromechanical locking or release systems
• Control panels and mechanical actuators
• Equipment requiring a short-range pulling motion

For more information please check the datasheets.
