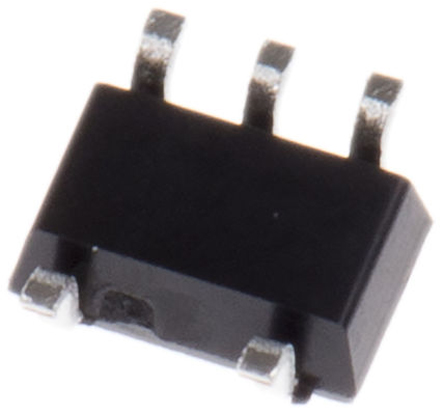

Nexperia 74LVC1G126GW,125 Buffer & Line Driver, 3-State, 5-Pin TSSOP

74LVC1G126GW-125 Nexperia 74LVC1G126GW,125 Buffer & Line Driver, 3-State, 5-Pin TSSOP
74LVC1G126GW,125
Nexperia

Product Information

Polarity:
Non-Inverting
Maximum Low Level Output Current:
32mA
Dimensions:
2.25 x 1.35 x 1mm
Mounting Type:
Surface Mount
Maximum Propagation Delay Time @ Maximum CL:
2.3 ns @ 2.7 V
Number of Channels per Chip:
1
Logic Function:
Buffer, Line Driver
Output Type:
3 State
Maximum High Level Output Current:
-32mA
Package Type:
TSSOP
Logic Family:
LVC
Input Type:
Single Ended
IC Type:
Buffer & Line Driver IC
Maximum Operating Supply Voltage:
5.5 V
Minimum Operating Supply Voltage:
1.65 V
Pin Count:
5
Propagation Delay Test Condition:
50pF
RoHs Compliant
Checking for live stock

This is Buffer & Line Driver 3-State 5-Pin TSSOP manufactured by Nexperia. The manufacturer part number is 74LVC1G126GW,125. While providing non-inverting polarity. On the other hand, it is featured with 32ma of max. low level output current. The given dimensions of the product include 2.25 x 1.35 x 1mm. The product is available in surface mount configuration. It provides up to 2.3 ns @ 2.7 v maximum propagation delay time. It comprises 1 channels per chip. The primary function of logic includes buffer, line driver. Furthermore, it has a3 state output. While a -32ma of maximum high level output current. The package is a sort of tssop. The logic family is lvc. It carries single ended input type. Additionally, it includes buffer & line driver ic type IC . It has 5.5 v maximum operating supply voltage. While its minimum operating supply voltage is 1.65 v. It contains 5 pins. Features 50pf of propagation delay test condition.

pdf icon
74LVC1G126(Technical Reference)
