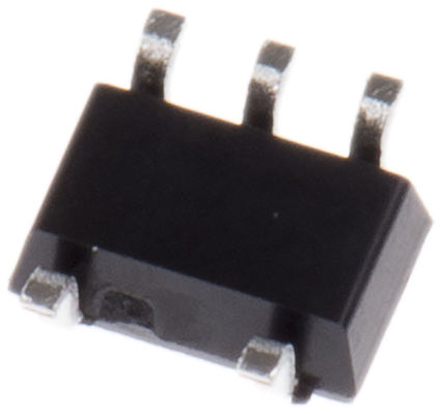

NXP 74LVC1G125GW,125 Buffer & Line Driver, 3-State, 1.65-5.5V, 5-Pin TSSOP

Enrgtech Part No: ET16799429
|
Manufacturer Part No:
74LVC1G125GW,125
|
Manufacturer: Nexperia

74LVC1G125GW-125 NXP 74LVC1G125GW,125 Buffer & Line Driver, 3-State, 1.65-5.5V, 5-Pin TSSOP

Product Information

Polarity:

Non-Inverting

Maximum Low Level Output Current:

32mA

Dimensions:

2.25 x 1.35 x 1mm

Mounting Type:

Surface Mount

Maximum Propagation Delay Time @ Maximum CL:

2.5 ns @ 2.7 V

Number of Channels per Chip:

Logic Function:

Buffer, Line Driver

Output Type:

3 State

Package Type:

TSSOP

Logic Family:

LVC

Input Type:

Single Ended

IC Type:

Buffer & Line Driver IC

Checking for live stock

The NXP 74LVC1G125GW is a high-performance buffer and line driver designed to optimise signal integrity in digital systems. With a broad voltage range and a 3-state output, it is ideal for high-speed data transmission in compact designs.

Standout Features and Benefits of the NXP Buffer & Line Driver

Operates from 1.65V to 5.5V for compatibility with various logic systems.
Ideal for bus systems and applications with shared data lines.
Compact design for space-saving in small form-factor circuits.
Efficient performance across multiple voltage levels.
Ensures fast and reliable data transmission with minimal delay.
Durable design for long-lasting, high-quality operation.

Optimised for Reliable Signal Transmission in Digital Systems

Engineered for high-speed, efficient signal processing, the NXP 74LVC1G125GW ensures accurate data handling across a variety of digital applications. Its 3-state output makes it especially useful in systems with shared signal lines, while the wide voltage range ensures versatility for various use cases.

Product Use Cases

Signal Buffering in Bus Systems: Supports multiple devices on shared data lines.
Data Line Drivers: Ideal for line driving in digital circuits with high-speed requirements.
Logic Level Conversion: Perfect for bridging between different voltage logic systems.
Space-Saving Applications: Compact design for integration into space-constrained systems.
Automation and Control Systems: Used in industrial control panels for reliable data communication.
