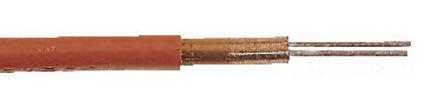

This is 4 Core 100m Red Fire Performance LSZH Electrical Wiring Cable manufactured by RS Pro. The manufacturer part number is 705-1345. Screen Options - screened. It has an earth cable included yes . The conductor has 12.1 ω/km resistance. The product consists of 4 cores. Its outer diameter is 10.5mm. The sheath is constructed from durable and adorable low smoke zero halogen (lszh) material. Its reel is 100m in length . It has a solid type conductor strand . It has a maximum operating temperature of +90°c. Moreover, the product has a nominal 500 v voltage rating. It bears 6 x d of minimum bend radius. Moreover, this cable has a multicore shape. Its accurate length is 100m. The product has a current rating of 19.5 a. It has a standard 75pf/m capacitance core to core . It has a/an aluminium foil type screen . The conductor is made from annealed copper material. It is a typical fire performance lszh cable. The sheath has an adorable red colour. It has about 150pf/m capacitance core to screen . The product has 1.5 mm² cross section area. Whereas, the minimum operating temperature of the product is -40°c. It has a robust lszh insulation material.
For more information please check the datasheets.
