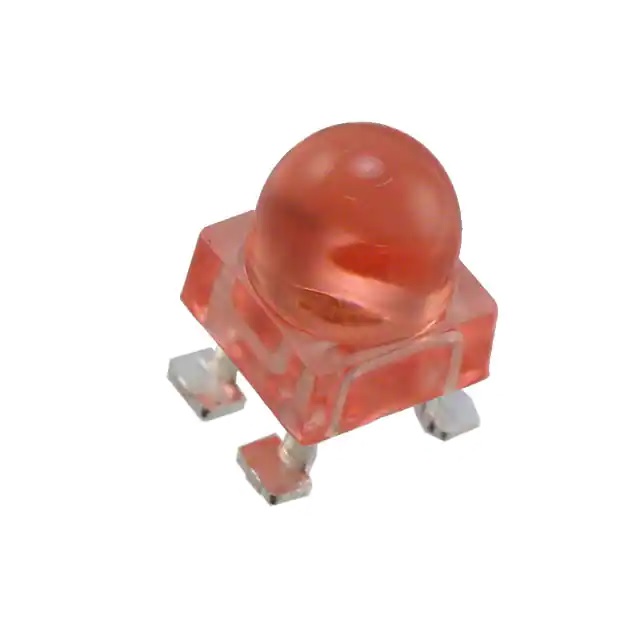

Broadcom ALMD ALMD-EG3D-WY002, 2.4 V Red LED SMD

ALMD-EG3D-WY002 Broadcom ALMD , 2.4 V Red LED SMD
ALMD-EG3D-WY002 Broadcom ALMD , 2.4 V Red LED SMD
Broadcom

Product Information

Mounting Type:
Surface Mount
Series:
ALMD
Forward Voltage:
2.4 V
Package Type:
SMD
Number of LEDs:
1
LED Colours:
Red
RoHs Compliant
Checking for live stock

The ALMD-EG3D-WY002 from Broadcom is a high-brightness red surface-mount LED designed for signage, indicators and compact PCB applications. With a dominant wavelength of 626 nm and a standard forward voltage around 2.1 V, this 4-lead gull-wing package supports automated SMT assembly and reflow processes, making it an ideal choice when reliability, performance and scalability matter.

Salient Features and Benefits of Choosing the Broadcom Red LED SMD

  • Emission wavelength of 626 nm (red) for high-visibility indication.
  • Low typical forward voltage (~2.1 V at 20 mA) enables efficient drive from standard logic and LED drivers.
  • High luminous intensity: up to ~9,300 mcd in the 30° viewing angle version.
  • Compact SMD-4 lead gull-wing package (4.2 mm × 4.2 mm footprint) facilitates high-density PCB layouts.
  • Reflow-compatible and industrial-grade (MSL 2A) for automated assembly and repair-friendly processes.
  • Tinted non-diffused lens offers a sharp, clear indication without a halo effect.

Optimised for Efficient Visual Indication

This LED is built to deliver consistent brightness and long life in demanding industrial or signage environments. Its AlInGaP material ensures stable light output and colour consistency; the standard 30° viewing angle enables focused indication in dashboards, displays or control panels. The low forward voltage and SMD format reduce board real estate and simplify drive circuitry, while the robust package supports high-volume SMT workflow and automated inspection.

Product Use Cases

  • Red indicator LED for industrial control panels, machines and instrumentation.
  • Visual status or warning light in signage and variable-message display systems.
  • PCB-mounted low-profile signal indication in high-density electronics.
  • Indicator light in automotive auxiliary modules (if specified for automotive grade).
  • Backlighting or marker LED in consumer electronics, appliances, and handheld devices.
  • Replacement or design upgrade LED for legacy panels requiring improved brightness and coverage.

pdf icon
Datasheet - ALMD-EG3D-WY002(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. We ship ALMD-EG3D-WY002 Internationally to many countries around the world.
Yes. You can also search ALMD-EG3D-WY002 on website for other similar products.
We accept all major payment methods for all products including ET22114187. Please check your shopping cart at the time of order.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET22114187 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Broadcom" products on our website by using Enrgtech's Unique Manufacturing Part Number ET22114187.
You can order Broadcom brand products with ALMD-EG3D-WY002 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in LEDs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Broadcom ALMD ALMD-EG3D-WY002, 2.4 V Red LED SMD. You can also check on our website or by contacting our customer support team for further order details on Broadcom ALMD ALMD-EG3D-WY002, 2.4 V Red LED SMD.
