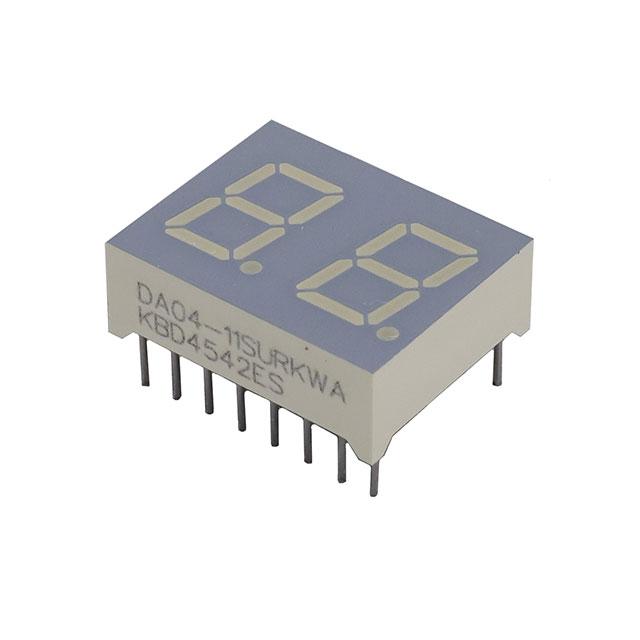

Kingbright DA04-11SURKWA
Product Information
Dominant Wavelength:
630 nm
Forward Current:
30mA
Common Connection:
Anode
Character Width:
6mm
External Depth:
16mm
Forward Voltage:
2 V
Luminous Intensity:
54 mcd
Maximum Operating Temperature:
+85°C
Colour of Face:
Grey
Operating Temperature Range:
-40 → +85°C
Character Height:
10mm
Number of Segments:
7
External Dimensions:
20.2 x 16 x 7mm
Display Type:
7-Segment
Mounting Type:
Through Hole
Series:
DA04
Number of Characters:
2
Power Dissipation:
75mW
Minimum Operating Temperature:
-40°C
LED Colours:
Red
Decimal Orientation:
Right Side
External Height:
7mm
External Width:
20.2mm
HTSUS:
8541.41.0000
RoHS Status:
ROHS3 Compliant
Millicandela Rating:
54mcd
Package / Case:
16-DIP (0.500", 12.70mm)
Current - Test:
20mA
REACH Status:
REACH Unaffected
edacadModel:
DA04-11SURKWA Models
Wavelength - Peak:
645nm
edacadModelUrl:
/en/models/4098496
Package:
Tube
Digit/Alpha Size:
0.39" (10.00mm)
Common Pin:
Common Anode
Size / Dimension:
0.795" H x 0.630" W x 0.276" D (20.20mm x 16.00mm x 7.00mm)
Power Dissipation (Max):
75mW
Number of Characters:
2
Voltage - Forward (Vf) (Typ):
1.95V
standardLeadTime:
8 Weeks
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Display Type:
7-Segment
Color:
Red
Series:
-
Base Product Number:
DA04-11
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search DA04-11SURKWA on website for other similar products.
We accept all major payment methods for all products including ET12579351. Please check your shopping cart at the time of order.
You can order Kingbright brand products with DA04-11SURKWA directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in LED Character and Numeric category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Kingbright DA04-11SURKWA. You can also check on our website or by contacting our customer support team for further order details on Kingbright DA04-11SURKWA.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET12579351 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Kingbright" products on our website by using Enrgtech's Unique Manufacturing Part Number ET12579351.
Yes. We ship DA04-11SURKWA Internationally to many countries around the world.
This is manufactured by Kingbright. The manufacturer part number is DA04-11SURKWA. It has a dominant wavelength of 630 nm. It features 30ma forward current. It has a common anode connection . In addition, it has about 6mm character width . It has an external depth of 16mm. The forward voltage is 2 v. It has 54 mcd of luminous intensity. It has a maximum operating temperature of +85°c. It is created with a grey colour face . The product has -40 → +85°c of operating temperature range. It has a standard 10mm character in height . It includes 7 segments . Features 20.2 x 16 x 7mm external caliber. It features a remarkable 7-segment display. The product is available in through hole configuration. The product da04, is a highly preferred choice for users. Consists of 2 characters. It has about 75mw power dissipation . Whereas, the minimum operating temperature of the product is -40°c. The LED has a classic red colours. Its decimal orientation is to the right side . While its external height is 7mm. The product is 20.2mm wide. It is assigned with possible HTSUS value of 8541.41.0000. The product is rohs3 compliant. On the other hand, 54mcd is the millicandela rating of the bespoke product. Moreover, the product comes in 16-dip (0.500", 12.70mm). The given current test of the product is [Current -Test]. In addition, it is reach unaffected. The peak wavelength of the product is 645nm. It is shipped in tube package . It has a [Digital/Alpha Size] of digital/alpha size. The common anode is the common pin of the product. The product's diameters include 0.795" h x 0.630" w x 0.276" d (20.20mm x 16.00mm x 7.00mm). The product carries maximum power dissipation 75mw. The typical forward voltage (Vf) of the product is 1.95v. It has a long 8 weeks standard lead time. Its typical moisture sensitivity level is 1 (unlimited). It has a classic red colour. Moreover, it corresponds to da04-11, a base product number of the product. The product is designated with the ear99 code number.
