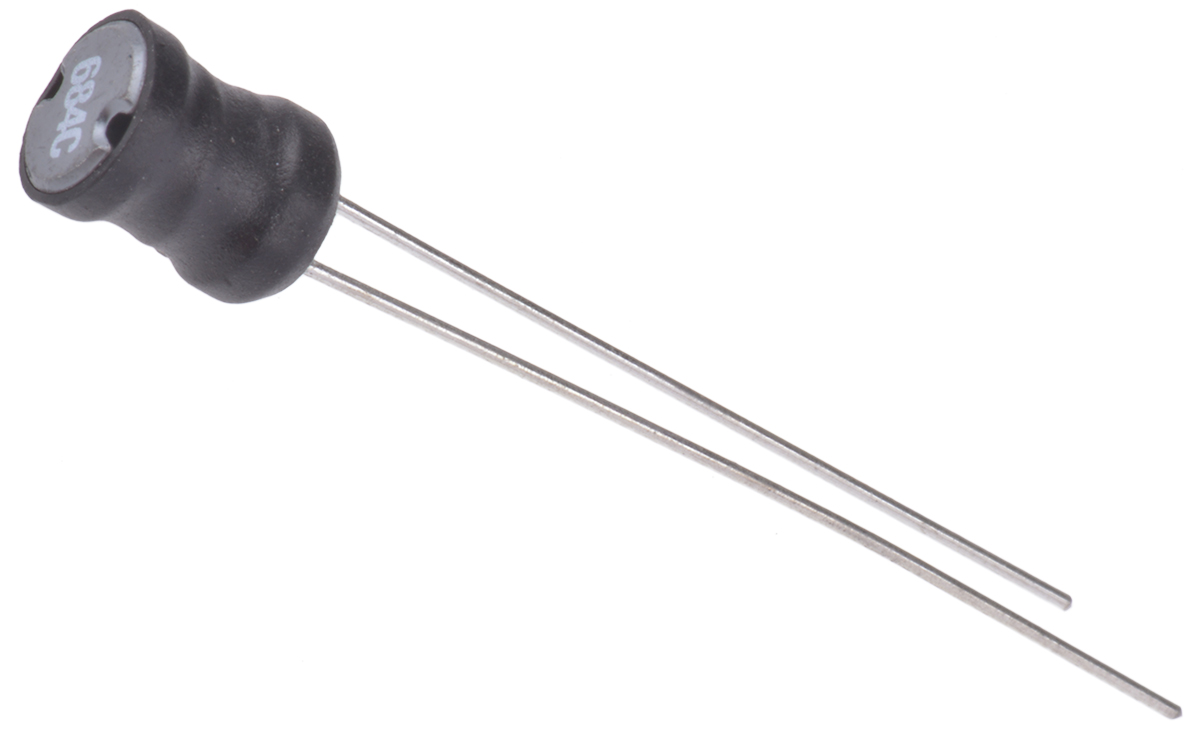

Murata 680 μH ±10% Power Inductor, Max SRF:2.5MHz, Q:120, 250mA Idc, 2.64Ω Rdc 2200R

22R684C Murata 680 μH ±10% Power Inductor, Max SRF:2.5MHz, Q:120, 250mA Idc, 2.64Ω Rdc 2200R
Murata Power Solutions

Product Information

Diameter:
7.2mm
Dimensions:
7.2 (Dia.) x 10.5mm
Lead Diameter:
0.6mm
Maximum DC Resistance:
2640mΩ
Maximum DC Current:
250mA
Series:
2200R
Minimum Operating Temperature:
-25°C
Minimum Quality Factor:
120
Length:
7.2mm
Height:
10.5mm
Depth:
8.5mm
Inductance:
680 μH
Maximum Self Resonant Frequency:
2.5MHz
Mounting Type:
Radial
Lead Pitch:
3mm
Maximum Operating Temperature:
+70°C
Tolerance:
±10%
Terminal Type:
Radial Leaded
RoHs Compliant
Checking for live stock

This is Murata 680 μH ±10% Power Inductor Max SRF:2.5MHz Q:120 250mA Idc 2.64Ω Rdc 2200R manufactured by Murata Power Solutions. The manufacturer part number is 22R684C. Its diameter is 7.2mm. The given dimensions of the product include 7.2 (dia.) x 10.5mm. Furthermore, the lead has 0.6mm diameter. It allows up to 2640mω maximum DC resistance. While it carries 250ma of maximum DC current. The product 2200r, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -25°c. It has minimum 120 quality factors. Its accurate length is 7.2mm. In addition, the height is 10.5mm. The product comes in 8.5mm depth. The product has a 680 μh inductance value. It provides 2.5mhz of maximum self-resonant frequency. The product is available in radial configuration. The lead features 3mm pitch. It has a maximum operating temperature of +70°c. It features ±10% of tolerance value. The terminal is a radial leaded type.

pdf icon
Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search 22R684C on website for other similar products.
We accept all major payment methods for all products including ET13953782. Please check your shopping cart at the time of order.
You can order Murata Power Solutions brand products with 22R684C directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Leaded Inductors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Murata 680 μH ±10% Power Inductor, Max SRF:2.5MHz, Q:120, 250mA Idc, 2.64Ω Rdc 2200R. You can also check on our website or by contacting our customer support team for further order details on Murata 680 μH ±10% Power Inductor, Max SRF:2.5MHz, Q:120, 250mA Idc, 2.64Ω Rdc 2200R.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13953782 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Murata Power Solutions" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13953782.
Yes. We ship 22R684C Internationally to many countries around the world.
