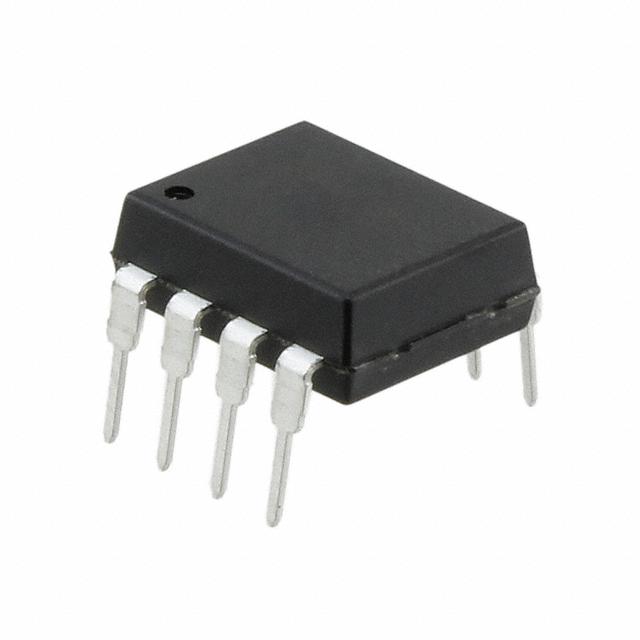

Broadcom Limited ACNW3190-000E

ACNW3190-000E Broadcom Limited
ACNW3190-000E
Broadcom Limited

Product Information

Voltage - Output Supply:
15V ~ 30V
HTSUS:
8541.49.8000
RoHS Status:
ROHS3 Compliant
Propagation Delay tpLH / tpHL (Max):
500ns, 500ns
Operating Temperature:
-40°C ~ 100°C
Approval Agency:
CSA, IEC/EN/DIN, UR
Package / Case:
8-DIP (0.400", 10.16mm)
Current - DC Forward (If) (Max):
25 mA
Rise / Fall Time (Typ):
100ns, 100ns
REACH Status:
REACH Unaffected
Number of Channels:
1
Current - Output High, Low:
4A, 4A
Package:
Tube
Pulse Width Distortion (Max):
300ns
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Common Mode Transient Immunity (Min):
15kV/µs
Voltage - Forward (Vf) (Typ):
1.6V
standardLeadTime:
35 Weeks
Voltage - Isolation:
5000Vrms
Mounting Type:
Through Hole
Series:
-
Supplier Device Package:
8-DIP
Current - Peak Output:
5A
Technology:
Optical Coupling
Base Product Number:
ACNW3190
ECCN:
EAR99
Checking for live stock

This is manufactured by Broadcom Limited. The manufacturer part number is ACNW3190-000E. Output supply voltage of 15v ~ 30v. It is assigned with possible HTSUS value of 8541.49.8000. The product is rohs3 compliant. It has a maximum propagation delay of 500ns, 500ns. The product has -40°c ~ 100°c operating temperature range. It is approved by csa, iec/en/din, ur. Moreover, the product comes in 8-dip (0.400", 10.16mm). The maximum DC forward current of the product is 25 ma. The typical rise and fall time of the product is 100ns, 100ns. In addition, it is reach unaffected. It is supplied with 1 channels. The high and low output current of the product is 4a, 4a. It is shipped in tube package . The maximum pulse width distortion is 300ns. Its typical moisture sensitivity level is 1 (unlimited). Allows a 15kv/µs of minimum common mode transient immunity. The typical forward voltage (Vf) of the product is 1.6v. It has a long 35 weeks standard lead time. 5000vrms of isolation voltage. The product is available in through hole configuration. 8-dip is the supplier device package value. It carries 5a peak current output. This product use optical coupling technology. Moreover, it corresponds to acnw3190, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Multiple Devices Marking/Labeling 07/Aug/2013(PCN Packaging)
pdf icon
Marking/Labeling Revision B 14/Jan/2014(PCN Packaging)
