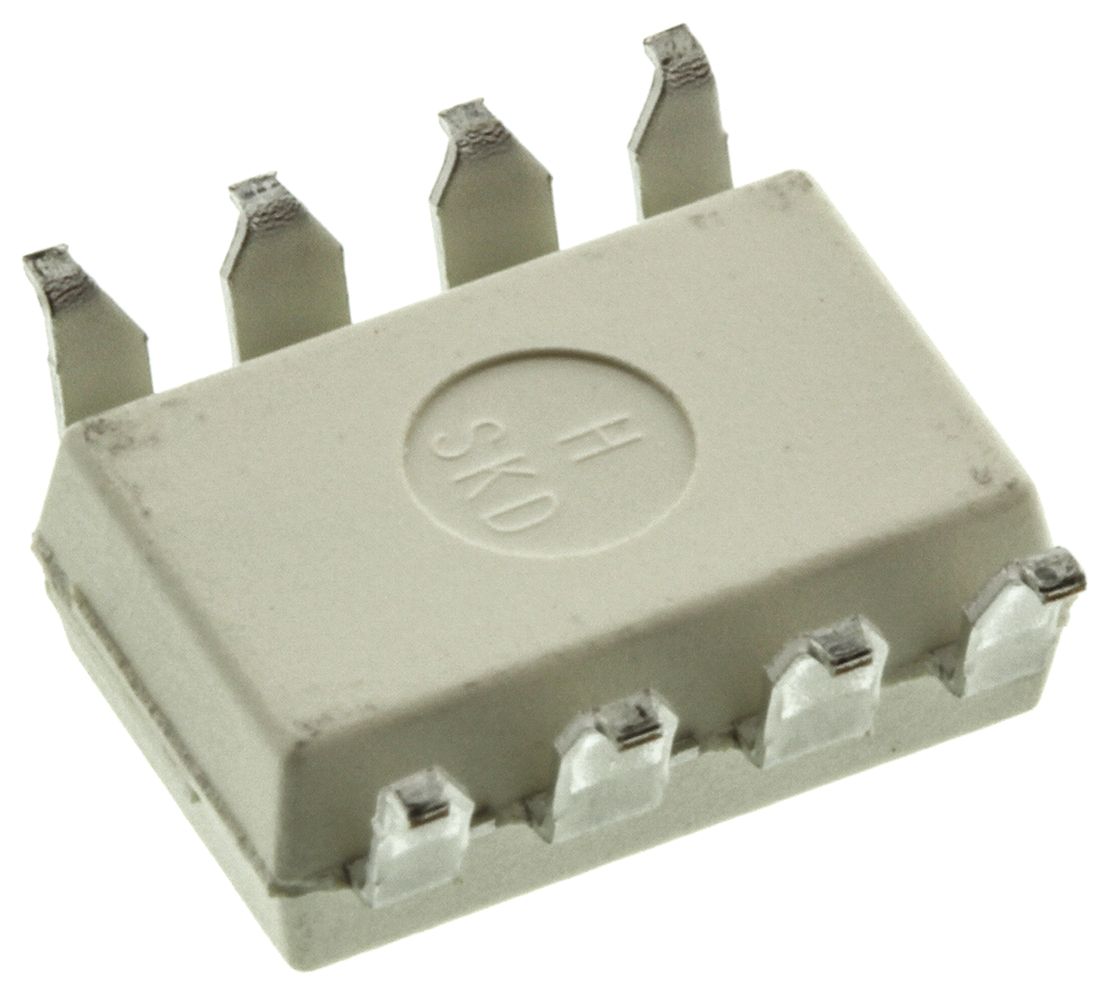

Broadcom HCPL-7800A-300E, Isolation Amplifier, 5 V, 8-Pin PDIP SMD

HCPL-7800A-300E Broadcom , Isolation Amplifier, 5 V, 8-Pin PDIP SMD
HCPL-7800A-300E
HCPL-7800A-300E Broadcom , Isolation Amplifier, 5 V, 8-Pin PDIP SMD
Broadcom

Product Information

Automotive Standard:
No
Isolation Voltage:
3750Vrms
Minimum Supply Voltage:
4.5V
Vos - Input Offset Voltage:
0.3 mV
Maximum Supply Voltage:
5.5V
Series:
HCPL-7800A
Minimum Operating Temperature:
-40°C
Height:
1.78mm
Width:
7.62 mm
Length:
9.8mm
Package Type:
DIP-8
Isolation Type:
Optical
Standards/Approvals:
CSA, UL 1577, IEC/EN/DIN EN 60747-5-2
Number of Channels:
1
CMRR - Common Mode Rejection Ratio:
76dB
Product Type:
Isolation Amplifier
Maximum Operating Temperature:
100°C
Pin Count:
8
Mount Type:
Through Hole
RoHs Compliant
Checking for live stock

This is Isolation Amplifier 5 V 8-Pin PDIP SMD manufactured by Broadcom. The manufacturer part number is HCPL-7800A-300E. The product complies with automotive standard - no. It has 3750vrms isolation voltage. It has a minimum 4.5v supply voltage . The product requires a maximum 5.5v supply voltage . The product hcpl-7800a, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -40°c. In addition, the height is 1.78mm. Furthermore, the product is 7.62 mm wide. Its accurate length is 9.8mm. The package is a sort of dip-8. Isolation type options optical. It is supplied with 1 channels. isolation amplifier is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 100°c. It contains 8 pins. It has a through hole type mount .

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. We ship HCPL-7800A-300E Internationally to many countries around the world.
Yes. You can also search HCPL-7800A-300E on website for other similar products.
We accept all major payment methods for all products including ET16752977. Please check your shopping cart at the time of order.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16752977 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Broadcom" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16752977.
You can order Broadcom brand products with HCPL-7800A-300E directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Isolation Amplifiers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Broadcom HCPL-7800A-300E, Isolation Amplifier, 5 V, 8-Pin PDIP SMD. You can also check on our website or by contacting our customer support team for further order details on Broadcom HCPL-7800A-300E, Isolation Amplifier, 5 V, 8-Pin PDIP SMD.
