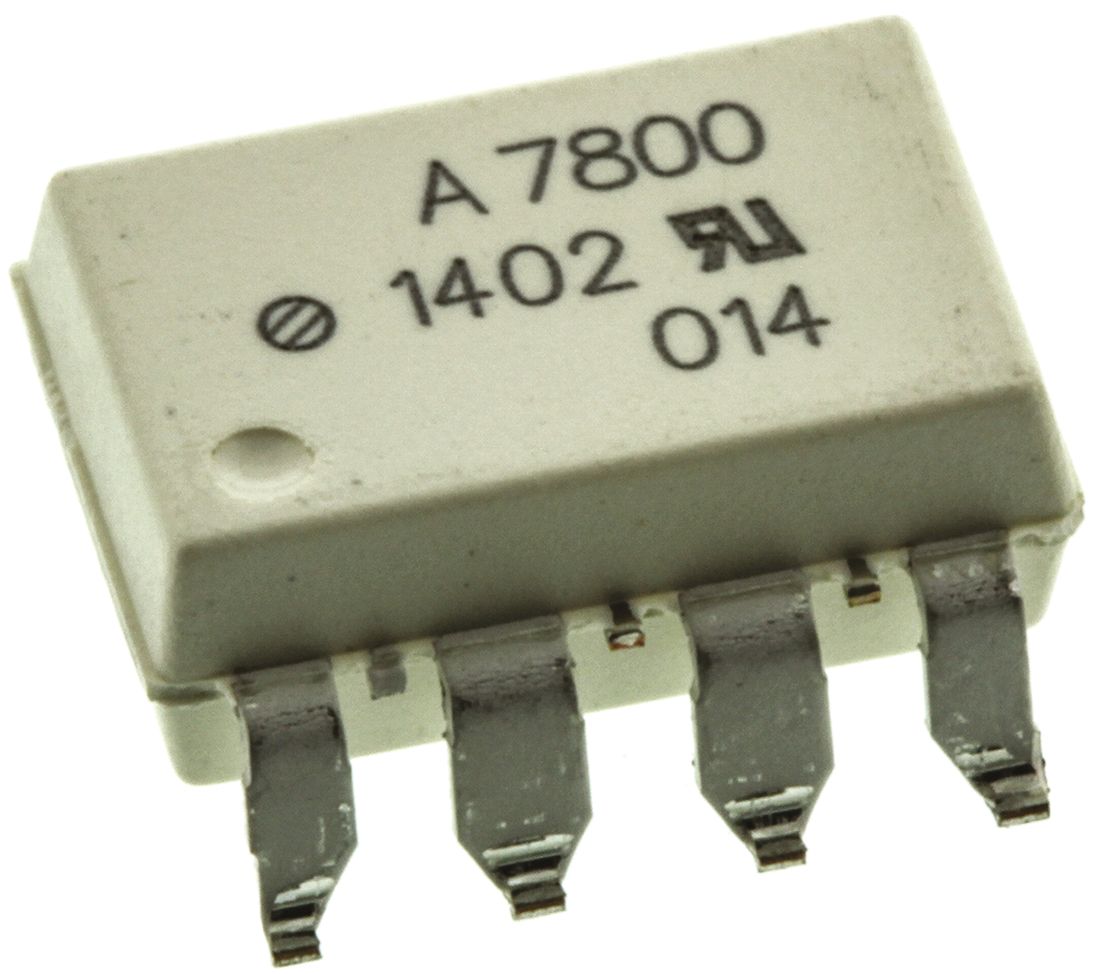

Broadcom HCPL-7800-300E, Isolation Amplifier, 5 V, 8-Pin PDIP SMD
Product Information
Dimensions:
3.56 x 9.8 x 6.35mm
Mounting Type:
Surface Mount
Power Supply Type:
Single
Number of Channels per Chip:
1
Isolation Mode Rejection:
76dB
Maximum Voltage Gain:
18.31dB
Height:
3.56mm
Typical Single Supply Voltage:
5 V
Width:
6.35mm
Length:
9.8mm
Package Type:
PDIP SMD
Minimum Operating Temperature:
-40 °C
Maximum Operating Temperature:
+85 °C
Pin Count:
8
Checking for live stock
FAQs
Yes. You can also search HCPL-7800-300E on website for other similar products.
We accept all major payment methods for all products including ET13860261. Please check your shopping cart at the time of order.
You can order Broadcom brand products with HCPL-7800-300E directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Isolation Amplifiers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Broadcom HCPL-7800-300E, Isolation Amplifier, 5 V, 8-Pin PDIP SMD. You can also check on our website or by contacting our customer support team for further order details on Broadcom HCPL-7800-300E, Isolation Amplifier, 5 V, 8-Pin PDIP SMD.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13860261 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Broadcom" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13860261.
Yes. We ship HCPL-7800-300E Internationally to many countries around the world.
Isolating Amplifiers, Avago Technologies The range of isolation amplifier optocouplers from Avago Technologies is ideal for industrial environments where the optocoupler is used to insulate high voltages and isolate any unwanted signals. Sigma-delta modulator technology allows the current and voltage sensor families to provide precise measurements of phase current and bus voltage in motor drives, power inverters and voltage signals in general isolation circuits. These isolation amplifiers offer high CMR (common mode rejection) performance and built-in safety insulation. They are a suitable alternative to the Hall Effect isolation amplifiers, for current and voltage sensing in power converters. Various types available including: precision isolation amplifiers miniature isolation amplifiers precision optically isolated voltage sensors isolated linear sensing ICs isolation amplifiers with short circuit and overload detection automotive isolation amplifiers
