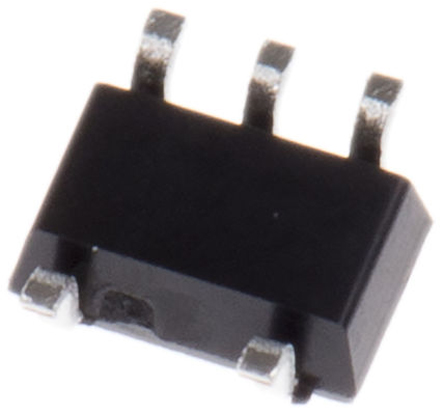

NXP 74LVC1G04GW,125 Inverter, 1.65 → 5.5 V, 5-Pin TSSOP
Product Information
Maximum Low Level Output Current:
32mA
Maximum High Level Output Current:
-32mA
Dimensions:
2.25 x 1.35 x 1mm
Mounting Type:
Surface Mount
Maximum Propagation Delay Time @ Maximum CL:
2.3 ns @ 2.7 V
Minimum Operating Supply Voltage:
1.65 V
Logic Function:
Inverter
Propagation Delay Test Condition:
50pF
Logic Family:
LVC
Height:
1mm
Width:
1.35mm
Length:
2.25mm
Package Type:
TSSOP
Number of Elements per Chip:
1
Minimum Operating Temperature:
-40 °C
Schmitt Trigger Input:
No
Maximum Operating Temperature:
+125 °C
Pin Count:
5
Maximum Operating Supply Voltage:
5.5 V
Checking for live stock
FAQs
Yes. You can also search 74LVC1G04GW,125 on website for other similar products.
We accept all major payment methods for all products including ET16892122. Please check your shopping cart at the time of order.
You can order Nexperia brand products with 74LVC1G04GW,125 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Inverters ICs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of NXP 74LVC1G04GW,125 Inverter, 1.65 → 5.5 V, 5-Pin TSSOP. You can also check on our website or by contacting our customer support team for further order details on NXP 74LVC1G04GW,125 Inverter, 1.65 → 5.5 V, 5-Pin TSSOP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16892122 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Nexperia" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16892122.
Yes. We ship 74LVC1G04GW,125 Internationally to many countries around the world.
This is NXP Inverter 1.65 → 5.5 V 5-Pin TSSOP manufactured by Nexperia. The manufacturer part number is 74LVC1G04GW,125. On the other hand, it is featured with 32ma of max. low level output current. While a -32ma of maximum high level output current. The given dimensions of the product include 2.25 x 1.35 x 1mm. The product is available in surface mount configuration. It provides up to 2.3 ns @ 2.7 v maximum propagation delay time. While its minimum operating supply voltage is 1.65 v. The primary function of logic includes inverter. Features 50pf of propagation delay test condition. The logic family is lvc. In addition, the height is 1mm. Furthermore, the product is 1.35mm wide. Its accurate length is 2.25mm. The package is a sort of tssop. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -40 °c. Schmitt Trigger Input - no. It has a maximum operating temperature of +125 °c. It contains 5 pins. It has 5.5 v maximum operating supply voltage.
