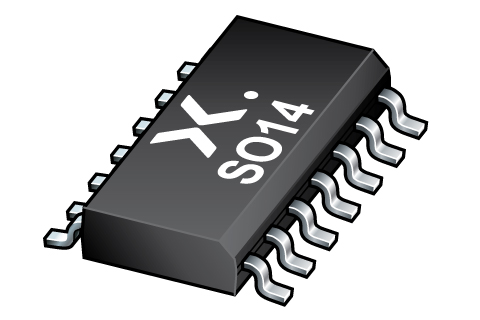

Hex Inverter Schmitt Trigger CMOS SOIC14
Product Information
Dimensions:
8.75 x 4 x 1.45mm
Logic Family:
74HC
Width:
4mm
Input Type:
Schmitt Trigger
Maximum Low Level Output Current:
5.2mA
Maximum High Level Output Current:
-5.2mA
Maximum Propagation Delay Time @ Maximum CL:
190 ns @ 50 pF
Minimum Operating Supply Voltage:
2 V
Output Type:
Single Ended
Package Type:
SO
Number of Elements per Chip:
6
Maximum Operating Temperature:
+125 °C
Length:
8.75mm
Pin Count:
14
Mounting Type:
Surface Mount
Maximum Operating Supply Voltage:
6 V
Logic Function:
Inverter Schmitt Trigger
Height:
1.45mm
Minimum Operating Temperature:
-40 °C
Schmitt Trigger Input:
Yes
Propagation Delay Test Condition:
50pF
Checking for live stock
FAQs
Yes. You can also search 74HC14D,653 on website for other similar products.
We accept all major payment methods for all products including ET16842859. Please check your shopping cart at the time of order.
You can order Nexperia brand products with 74HC14D,653 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Inverters ICs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Hex Inverter Schmitt Trigger CMOS SOIC14. You can also check on our website or by contacting our customer support team for further order details on Hex Inverter Schmitt Trigger CMOS SOIC14.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16842859 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Nexperia" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16842859.
Yes. We ship 74HC14D,653 Internationally to many countries around the world.
This is Hex Inverter Schmitt Trigger CMOS SOIC14 manufactured by Nexperia. The manufacturer part number is 74HC14D,653. The given dimensions of the product include 8.75 x 4 x 1.45mm. The logic family is 74hc. Furthermore, the product is 4mm wide. It carries schmitt trigger input type. On the other hand, it is featured with 5.2ma of max. low level output current. While a -5.2ma of maximum high level output current. It provides up to 190 ns @ 50 pf maximum propagation delay time. While its minimum operating supply voltage is 2 v. Furthermore, it has asingle ended output. The package is a sort of so. It consists of 6 elements per chip. It has a maximum operating temperature of +125 °c. Its accurate length is 8.75mm. It contains 14 pins. The product is available in surface mount configuration. It has 6 v maximum operating supply voltage. The primary function of logic includes inverter schmitt trigger. In addition, the height is 1.45mm. Whereas, the minimum operating temperature of the product is -40 °c. Schmitt Trigger Input - yes. Features 50pf of propagation delay test condition.
