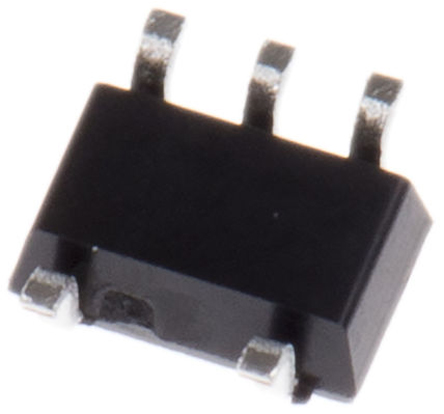

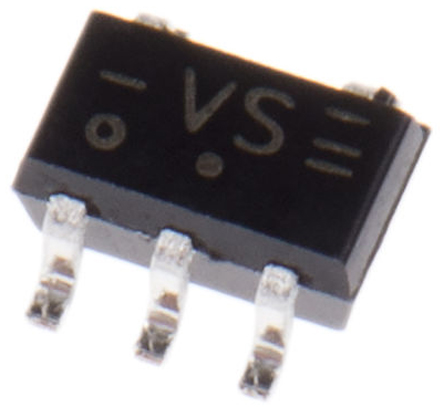

NXP 74AHC1G14GW,125 Schmitt Trigger Inverter, 2 → 5.5 V, 5-Pin TSSOP
Product Information
Maximum Low Level Output Current:
8mA
Maximum High Level Output Current:
-8mA
Dimensions:
2.25 x 1.35 x 1mm
Mounting Type:
Surface Mount
Maximum Propagation Delay Time @ Maximum CL:
10.6 ns @ 4.5 V to 5.5 V, 16.3 ns @ 3 V to 3.6 V
Minimum Operating Supply Voltage:
2 V
Minimum Operating Temperature:
-40 °C
Logic Function:
Inverter
Propagation Delay Test Condition:
50pF
Logic Family:
AHC
Height:
1mm
Width:
1.35mm
Length:
2.25mm
Package Type:
TSSOP
Number of Elements per Chip:
1
Input Type:
Schmitt Trigger
Schmitt Trigger Input:
Yes
Maximum Operating Temperature:
+125 °C
Pin Count:
5
Maximum Operating Supply Voltage:
5.5 V
Checking for live stock
FAQs
Yes. You can also search 74AHC1G14GW,125 on website for other similar products.
We accept all major payment methods for all products including ET16799137. Please check your shopping cart at the time of order.
You can order Nexperia brand products with 74AHC1G14GW,125 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Inverters ICs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of NXP 74AHC1G14GW,125 Schmitt Trigger Inverter, 2 → 5.5 V, 5-Pin TSSOP. You can also check on our website or by contacting our customer support team for further order details on NXP 74AHC1G14GW,125 Schmitt Trigger Inverter, 2 → 5.5 V, 5-Pin TSSOP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16799137 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Nexperia" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16799137.
Yes. We ship 74AHC1G14GW,125 Internationally to many countries around the world.
This is NXP Schmitt Trigger Inverter 2 → 5.5 V 5-Pin TSSOP manufactured by Nexperia. The manufacturer part number is 74AHC1G14GW,125. On the other hand, it is featured with 8ma of max. low level output current. While a -8ma of maximum high level output current. The given dimensions of the product include 2.25 x 1.35 x 1mm. The product is available in surface mount configuration. It provides up to 10.6 ns @ 4.5 v to 5.5 v, 16.3 ns @ 3 v to 3.6 v maximum propagation delay time. While its minimum operating supply voltage is 2 v. Whereas, the minimum operating temperature of the product is -40 °c. The primary function of logic includes inverter. Features 50pf of propagation delay test condition. The logic family is ahc. In addition, the height is 1mm. Furthermore, the product is 1.35mm wide. Its accurate length is 2.25mm. The package is a sort of tssop. It consists of 1 elements per chip. It carries schmitt trigger input type. Schmitt Trigger Input - yes. It has a maximum operating temperature of +125 °c. It contains 5 pins. It has 5.5 v maximum operating supply voltage.
