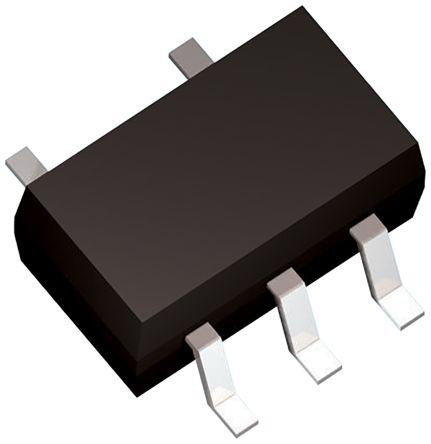

Toshiba TC7SZ14FU,LJ(CT Schmitt Trigger Inverter, 5-Pin SOT-353

TC7SZ14FU-LJ-CT Toshiba TC7SZ14FU,LJ(CT Schmitt Trigger Inverter, 5-Pin SOT-353
Toshiba

Product Information

Automotive Standard:
AEC-Q100
Maximum Operating Supply Voltage:
5.5 V
Dimensions:
2 x 1.25 x 0.9mm
Mounting Type:
Surface Mount
Maximum Propagation Delay Time @ Maximum CL:
17.5 ns @ 15 pF
Minimum Operating Supply Voltage:
1.65 V
Minimum Operating Temperature:
-40 °C
Logic Function:
Inverter
Propagation Delay Test Condition:
15pF
Output Type:
Inverting
Height:
0.9mm
Width:
1.25mm
Length:
2mm
Package Type:
SOT-353
Logic Family:
CMOS
Input Type:
CMOS
Schmitt Trigger Input:
Yes
Maximum Operating Temperature:
+125 °C
Pin Count:
5
Number of Elements per Chip:
1
RoHs Compliant
Checking for live stock

This is Schmitt Trigger Inverter 5-Pin SOT-353 manufactured by Toshiba. The manufacturer part number is TC7SZ14FU,LJ(CT. The product complies with automotive standard - aec-q100. It has 5.5 v maximum operating supply voltage. The given dimensions of the product include 2 x 1.25 x 0.9mm. The product is available in surface mount configuration. It provides up to 17.5 ns @ 15 pf maximum propagation delay time. While its minimum operating supply voltage is 1.65 v. Whereas, the minimum operating temperature of the product is -40 °c. The primary function of logic includes inverter. Features 15pf of propagation delay test condition. Furthermore, it has ainverting output. In addition, the height is 0.9mm. Furthermore, the product is 1.25mm wide. Its accurate length is 2mm. The package is a sort of sot-353. The logic family is cmos. It carries cmos input type. Schmitt Trigger Input - yes. It has a maximum operating temperature of +125 °c. It contains 5 pins. It consists of 1 elements per chip.
