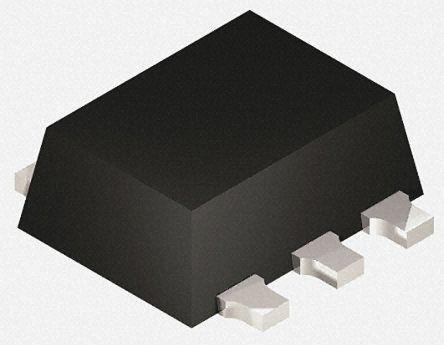

This is Inverter 5-Pin SOT-553 manufactured by Toshiba. The manufacturer part number is TC7SZ05FE. The given dimensions of the product include 1.6 x 1.2 x 0.55mm. The logic family is lmos. Furthermore, the product is 1.2mm wide. It carries cmos input type. The product complies with automotive standard - aec-q100. On the other hand, it is featured with 32ma of max. low level output current. While a -32ma of maximum high level output current. It provides up to 12 ns @ 50 pf maximum propagation delay time. While its minimum operating supply voltage is 1.65 v. Furthermore, it has aopen drain output. The package is a sort of sot-553. It consists of 1 elements per chip. It has a maximum operating temperature of +125 °c. Its accurate length is 1.6mm. It contains 5 pins. It has 5.5 v maximum operating supply voltage. The product is available in surface mount configuration. The primary function of logic includes inverter. In addition, the height is 0.55mm. Whereas, the minimum operating temperature of the product is -40 °c. Features 50pf of propagation delay test condition.
