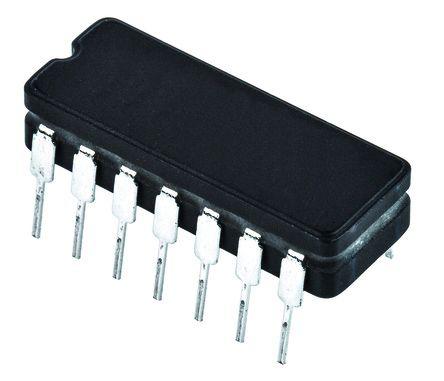

This is Hex Schmitt Trigger Inverter 2 → 6 V 14-Pin CDIP manufactured by Texas Instruments. The manufacturer part number is SNJ54HC14J. The given dimensions of the product include 19.94 x 7.62 x 3.56mm. The logic family is hc. Furthermore, the product is 7.62mm wide. It carries schmitt trigger input type. On the other hand, it is featured with 5.2ma of max. low level output current. While a -5.2ma of maximum high level output current. It provides up to 190 ns @ 50 pf maximum propagation delay time. While its minimum operating supply voltage is 2 v. Furthermore, it has acmos output. The package is a sort of cdip. It consists of 6 elements per chip. It has a maximum operating temperature of +125 °c. Its accurate length is 19.94mm. It contains 14 pins. The product is available in through hole configuration. It has 6 v maximum operating supply voltage. The primary function of logic includes inverter. In addition, the height is 3.56mm. Whereas, the minimum operating temperature of the product is -55 °c. Schmitt Trigger Input - yes. Features 50pf of propagation delay test condition. The product is rohs3 compliant. It is shipped in tube package . Its typical moisture sensitivity level is not applicable.
