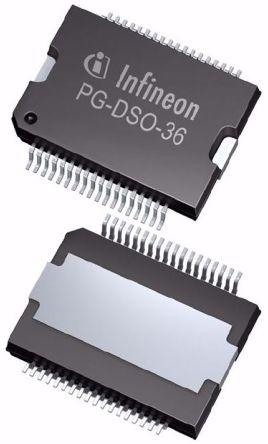

Infineon TLE7230R, Octal Intelligent Power Switch, Low Side Power Switch, 4.5 → 5.5V, DSO-36-47 36-Pin

Enrgtech Part No: ET13812536
|
Manufacturer Part No:
TLE7230R
|
Manufacturer: Infineon

TLE7230R Infineon , Octal Intelligent Power Switch, Low Side Power Switch, 4.5 → 5.5V, DSO-36-47 36-Pin

Product Information

Number of Outputs:

Power Switch Type:

Low Side Power Switch

Dimensions:

15.9 x 11 x 3.25mm

Mounting Type:

Surface Mount

Minimum Operating Temperature:

-40 °C

Height:

3.25mm

Width:

11mm

Length:

15.9mm

Package Type:

DSO-36-47

Voltage:

4.5 → 5.5V

Switch On Resistance:

1.7Ω

Maximum Operating Temperature:

+150 °C

Checking for live stock

The Infineon TLE7230R delivers advanced low-side switching with eight open‑drain outputs, controlled via a reliable SPI interface. Operating from 4.5 V to 5.5 V, this compact surface-mount IC (15.9 × 11 × 3.25 mm) offers robust performance across −40 °C to +150 °C environments, perfect for UK industrial, automotive, and automation applications. Its DSO‑36‑47 package and solid design ensure seamless PCB integration and dependable switching operations. It TLE7230R combines precision control, protection, and compact form, ideal for discerning UK engineers and OEMs seeking top-tier reliability and scalability.

Reasons You Should Buy the Infineon Octal Intelligent Power Switch

The TLE7230R stands out by merging multi-channel control with intelligent diagnostics and protective features. With eight outputs managed via SPI, built-in protection against over-voltage, over-temperature, short-circuit, and ESD ensure system durability. Its low quiescent current and compact footprint make it a highly efficient, resilient choice for discerning engineering applications.

Advanced Features and Benefits of the Product

Eight‑Channel Control via SPI: Flexible and precise operation across multiple circuits.
Robust Protection Features: Safeguards against overloads, short circuits, overvoltage, over‑temperature, and ESD.
Wide Operating Range: Functions reliably between −40 °C and +150 °C, catering to varied UK environments.
Compact Surface-Mount Design: Saves PCB space, enabling high-density layouts.
Efficient Power Use: Low quiescent current promotes lower heat generation and energy consumption.

Versatile Applications

Automotive control modules: engine management, ABS, powertrain systems
Industrial automation: driving relays, solenoids, stepper motors
Diagnostics and feedback systems requiring load monitoring
High-density PCB layouts in industrial controls
UK-based OEM and manufacturing applications needing compact, reliable switching

TLE7230R Smart Octal Low-Side Switch(Technical Reference)
