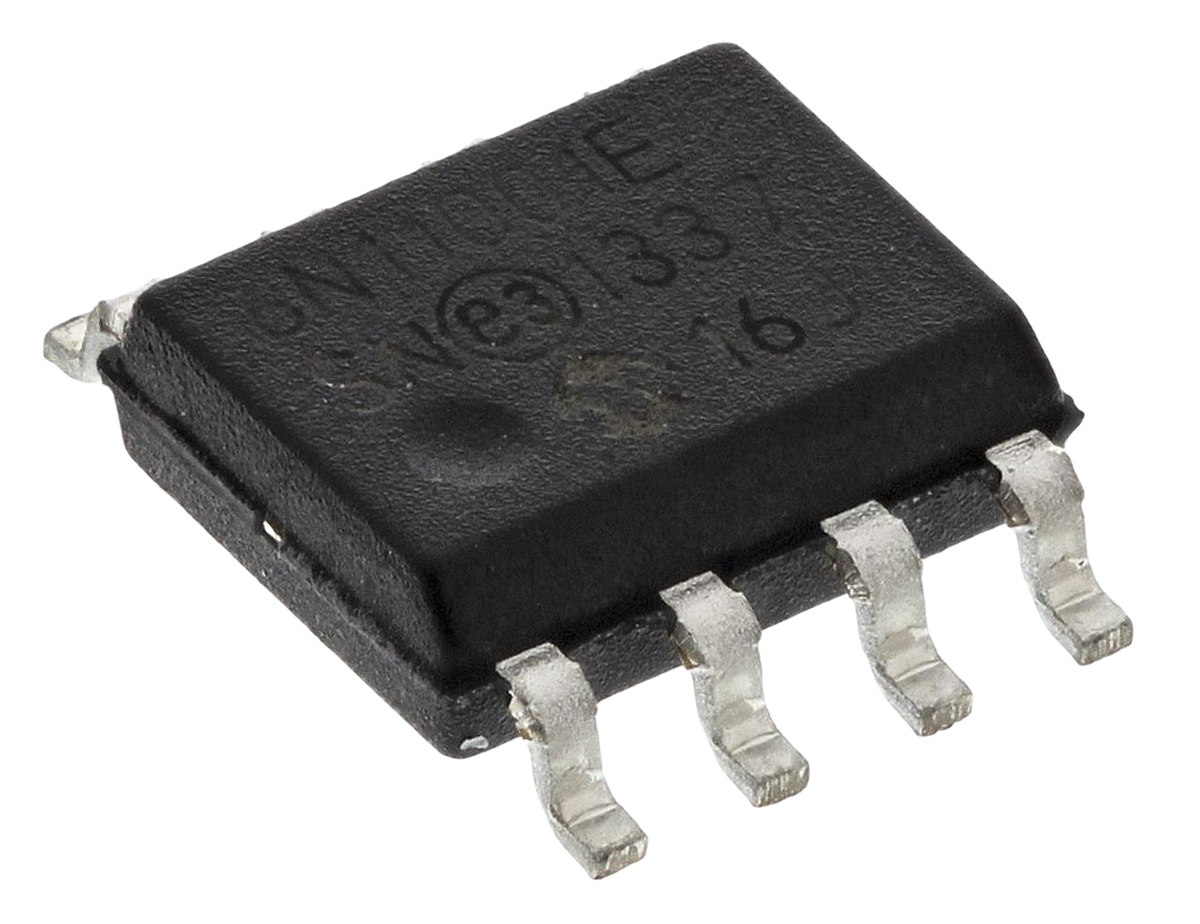

Microchip MCP6N11-001E/SN, Instrumentation Amplifier, 0.35V Offset 500kHz, R-RI/O, 1.8 → 5.5 V, 8-Pin SOIC

Enrgtech Part No: ET13957269
|
Manufacturer Part No:
MCP6N11-001E/SN
|
Manufacturer: Microchip

MCP6N11-001E-SN Microchip MCP6N11-001E/SN, Instrumentation Amplifier, 0.35V Offset 500kHz, R-RI/O, 1.8 → 5.5 V, 8-Pin SOIC

Product Information

Minimum CMRR:

70dB

Maximum Input Offset Voltage:

0.35V

Typical Gain Bandwidth Product:

500kHz

Dimensions:

4.9 x 3.9 x 1.25mm

Mounting Type:

Surface Mount

Power Supply Type:

Single

Rail to Rail:

Rail to Rail Input/Output

Height:

1.25mm

Typical Single Supply Voltage:

1.8 5.5 V

Width:

3.9mm

Length:

4.9mm

Package Type:

SOIC

Checking for live stock

This is Instrumentation Amplifier 0.35V Offset 500kHz R-RI/O 1.8 → 5.5 V 8-Pin SOIC manufactured by Microchip. The manufacturer part number is MCP6N11-001E/SN. It is designed with a minimum 70db CMRR . It has a maximum 0.35v input offset voltage . Features 500khz typical gain bandwidth. The given dimensions of the product include 4.9 x 3.9 x 1.25mm. The product is available in surface mount configuration. It is a type of single power supply. Rail to rail options include rail to rail input/output. In addition, the height is 1.25mm. It has a typical single supply voltage of 1.8 5.5 v. Furthermore, the product is 3.9mm wide. Its accurate length is 4.9mm. The package is a sort of soic. Whereas, the minimum operating temperature of the product is -40 °c. Moreover, it has a maximum 0.8 ma supply current . It has a maximum operating temperature of +125 °c. It contains 8 pins.
