83 x 16.2 x 112.9mm Inspection Window for use with NEMA 12 Enclosure, NEMA 4 Enclosure

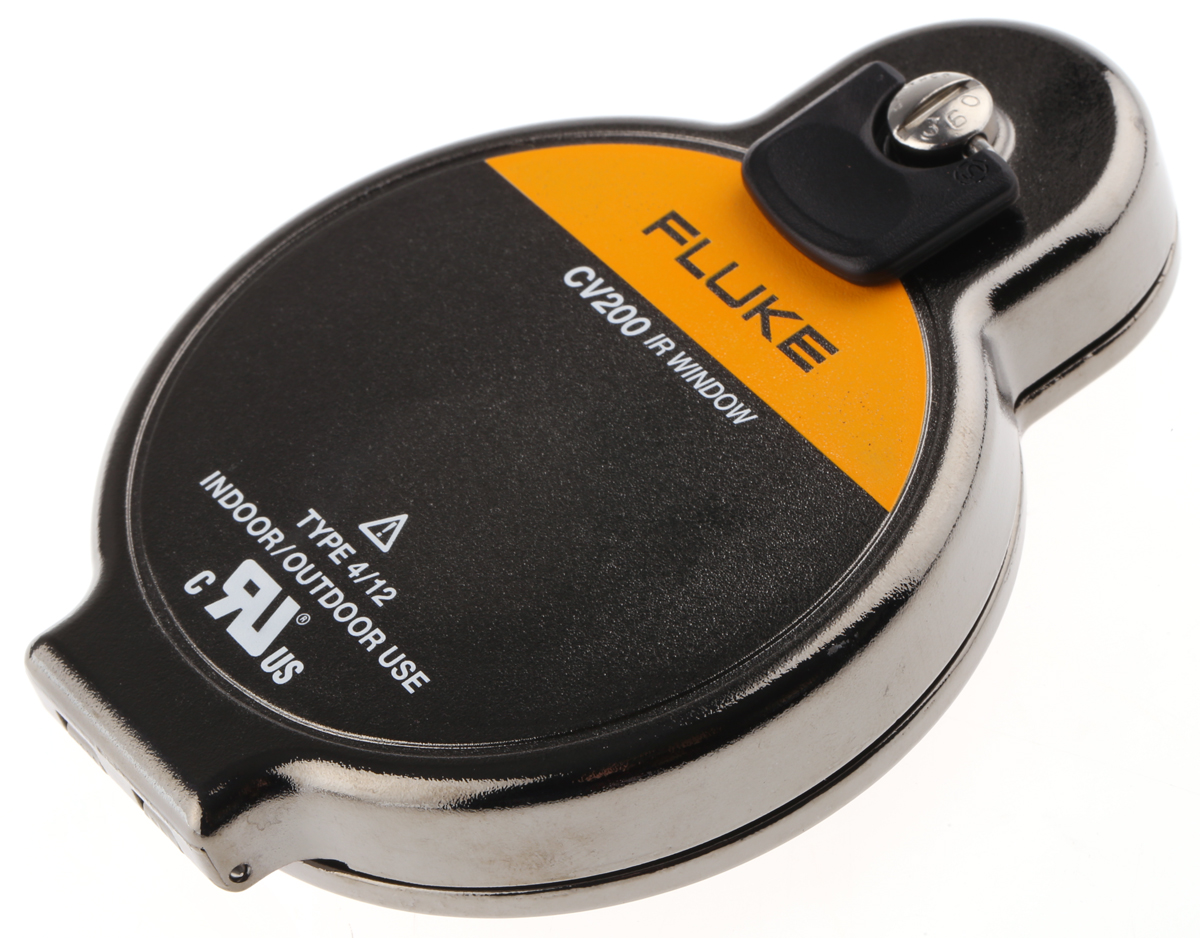

The CV200 provides a viewing port for electrical enclosures that lets technicians safely inspect or image components without opening the cabinet door. Once installed, it enables thermal imaging or visual inspection of enclosed live panels and gear, lowering risk and improving efficiency. It’s a simple yet powerful tool for spotting hot spots, loose connections, or thermal irregularities without shutting down equipment.

Key Features and Benefits of Buying the Fluke CV200 Inspection Window for NEMA 12 Enclosure, NEMA 4 Enclosure

• The IR window is rated NEMA Type 4/12, making it suitable for indoor and outdoor use and compatible with most standard industrial or commercial enclosures.
• Ensures compact installation, yet its 50 mm (2 inch) ClirVu optic allows practical imaging and inspection through the enclosure wall.
• Built-in grounding system (AutoGround) ensures the window becomes part of the metal enclosure’s earthing scheme.
• The door latch system seals with high-temperature silicone gaskets and pressure-tight door compression, providing robust protection against dust, moisture, and environmental influences.
• Tested to rigorous safety and environmental standards, IP67 dust/moisture rating, arc-blast resistance (per IEEE C37.20.7 63 kA test), UL 50/50E/50V, UL1558, CSA 22.2, IEC 60529, and compliance with NEMA 4/12.

Why Buy It?

• Installing a CV200 window transforms how you perform inspections and preventive maintenance:
• It reduces the need to open enclosure doors, lowering exposure to live parts and reducing arc-flash risk.
• Dust, moisture, and environmental sealing ensure it remains dependable even in demanding industrial or outdoor environments, reducing maintenance on the enclosure itself.
• The compact design and standard hole-punch installation make it a practical retrofit option for existing switchgear or panels.

Versatility in Applications

• Thermal-imaging inspections of switchgear, distribution panels, and industrial control cabinets to detect hotspots or loose connections.
• Preventive maintenance routines where visual inspections or IR scans must be done without shutting down equipment.
• Facilities where environmental conditions (dust, humidity) demand sealed, weather-resistant inspection ports.
• Retrofitting existing enclosures (NEMA 12 / 4) to add inspection capability without compromising safety or enclosure integrity.
• Any application requiring safe, sealed access for diagnostics in electrical, HVAC, industrial automation, and power-distribution systems.

For more information please check the datasheets.
