Output Voltage Adjustment Range:
24 → 28.8V
Load Regulation:
0.2 (Static Load) %, 2 (Dynamic Load) %
AC or DC Output Voltage:
dc
Output Current:
5A
Mounting Type:
DIN Rail Mount
Efficiency:
93%
Maximum Temperature:
+70°C
Series:
SITOP PSU8200
Electrical Phase:
1
AC or DC Input Voltage:
ac
Height:
125mm
Width:
45mm
Depth:
125mm
MTBF:
1421519h
Output Voltage:
24V dc
Minimum Temperature:
-25°C
Power Rating:
120W
Ripple And Noise:
50mV
Type:
Power Supply
Input Voltage:
120 V ac, 230 V ac
HTSUS:
8504.40.9520
RoHS Status:
ROHS3 Compliant
Voltage - Output 1:
24V
Power (Watts):
120W
Current - Output (Max):
5A
Approval Agency:
CB, cCSAus, CE, CSA, cUL, cULus, UL
Input Type:
AC
Applications:
Hazardous Locations, Industrial, ITE (Commercial)
Voltage - Output 4:
-
Voltage - Output 5:
-
Voltage - Output 6:
-
REACH Status:
REACH Unaffected
Voltage - Output 2:
-
Voltage - Output 3:
-
Efficiency:
93%
DC Voltage - Input (Max):
-
Package:
Bulk
DC Voltage - Input (Min):
-
Minimum Load Required:
-
Size / Dimension:
4.92" L x 1.77" W x 4.92" H (125.0mm x 45.0mm x 125.0mm)
standardLeadTime:
8 Weeks
AC Voltage - Input:
85 ~ 132 VAC, 176 ~ 264 VAC
Moisture Sensitivity Level (MSL):
Not Applicable
Features:
Adjustable Output, IP20, Universal Input
Series:
6EP3
Operating Temperature:
-25°C ~ 70°C
Standard Number:
60950-1; UL 508
Number of Outputs:
1
ECCN:
EAR99

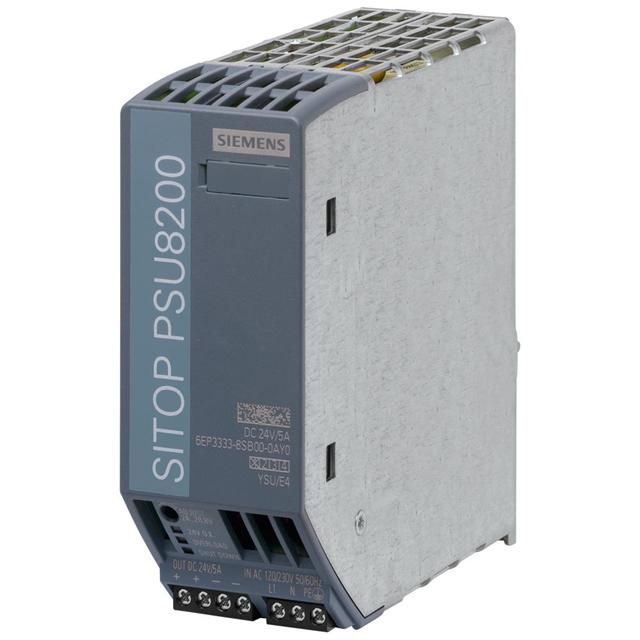

This is DIN Rail Power Supply 24V dc Output Voltage 5A Output Current manufactured by Siemens. The manufacturer part number is 6EP33338SB000AY0. It has 24 → 28.8v of output voltage adjustment range. Load Regulation - 0.2 (static load) %, 2 (dynamic load) %. It has a/an dc output voltage . It carries 5a output current. The product is available in din rail mount configuration. It is a highly efficient product with an 93% of high efficiency. The product has +70°c maximum temperature. The product sitop psu8200, is a highly preferred choice for users. Its electrical phase configuration includes 1. It has ac input voltage. In addition, the height is 125mm. Furthermore, the product is 45mm wide. The product comes in 125mm depth. The MTBF values include 1421519h. Features a 24v dc output voltage. While its minimum temperature is -25°c. Feature 120w of power rating. Carries 50mv ripple and noise. It comes in power supply configuration. Its input voltage is 120 v ac, 230 v ac. It is assigned with possible HTSUS value of 8504.40.9520. The product is rohs3 compliant. It has a 24v output voltage. The product features power and watts of 120w. The maximum product's output current is 5a. It is approved by cb, ccsaus, ce, csa, cul, culus, ul. It carries ac input type. The product is widely employed in hazardous locations, industrial, ite (commercial). In addition, it is reach unaffected. It is shipped in bulk package . The product's diameters include 4.92" l x 1.77" w x 4.92" h (125.0mm x 45.0mm x 125.0mm). It has a long 8 weeks standard lead time. The product has an AC input voltage range of 85 ~ 132 vac, 176 ~ 264 vac. Its typical moisture sensitivity level is not applicable. The splendid features of the product include adjustable output, ip20, universal input. The product 6ep3, is a highly preferred choice for users. The product has -25°c ~ 70°c operating temperature range. Standard number include: 60950-1; ul 508. Additionally, the product is supplied with 1 outputs. The product is designated with the ear99 code number.
