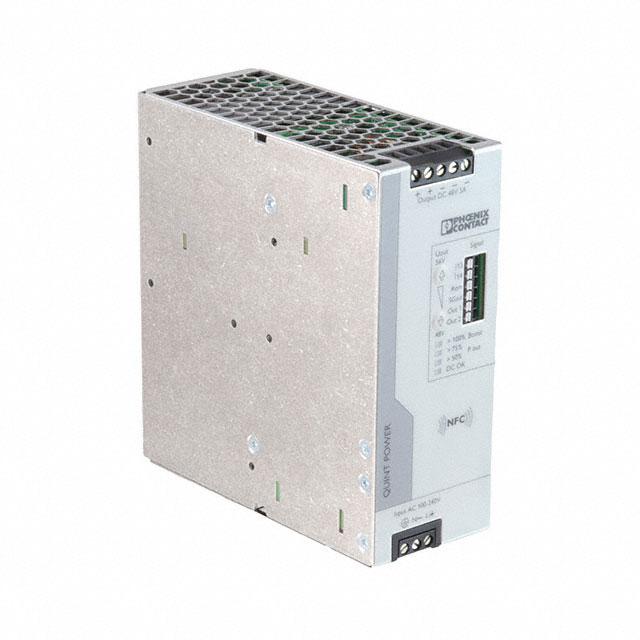

QUINT4 DIN Rail Panel Mount Power Supply, 240W, 48 → 56V dc/ 5A
Product Information
Maximum Temperature:
+70°C
AC or DC Output Voltage:
dc
Minimum Temperature:
-25°C
AC or DC Input Voltage:
ac, dc
Width:
50mm
MTBF:
>784000h
Electrical Phase:
1
Type:
Switch Mode
Standards Met:
ABS, BV, DIN VDE 0100-410, DNV GL, EN 50178/VDE 0160 (PELV), EN 60204-1 (PELV), EN 61000-3-2, EN 61558-2-16, IEC 60950-1, IEC 60950-1/VDE 0805 (SELV), LR, PRS, UL 60950-1, UL ANSI/ISA-12.12.01 Class I, UL Listed UL 508
Efficiency:
93.5%
Input Voltage:
100 → 240 V ac / 110 → 250V dc
Number of Outputs:
1
Ripple And Noise:
80mV Pk-Pk
Hazardous Area Certification:
Class I Division 2 Group A, Class I Division 2 Group B, Class I Division 2 Group C, Class I Division 2 Group D
Depth:
125mm
Special Features:
Dynamic Boost with up to 200% for 5 Second, High-Performance QUINT POWER Power Supplies, Monitoring Indicates Critical Operating States Before Errors Occur, NFC Interface
Mounting Type:
DIN Rail Mount
Output Current:
5A
Series:
QUINT4-PS/1AC/48DC/5
Height:
130mm
Output Voltage:
48V dc
Power Rating:
240W
HTSUS:
8504.40.9530
RoHS Status:
ROHS3 Compliant
Voltage - Output 1:
48V
Power (Watts):
240W
Current - Output (Max):
5A
Approval Agency:
CB, CSA, CSAus, cUL, cULus, cURus, EAC, TUV, UL
Input Type:
AC or DC
Applications:
Industrial, ITE (Commercial), Laboratory
Voltage - Output 4:
-
Voltage - Output 5:
-
Voltage - Output 6:
-
REACH Status:
REACH Affected
Voltage - Output 2:
-
Voltage - Output 3:
-
Efficiency:
93.5%
DC Voltage - Input (Max):
250V
Package:
Bulk
DC Voltage - Input (Min):
110V
Minimum Load Required:
No
Size / Dimension:
4.92" L x 1.97" W x 5.12" H (125.0mm x 50.0mm x 130.0mm)
AC Voltage - Input:
100 ~ 240 VAC
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Features:
IP20
Series:
Quint
Operating Temperature:
-25°C ~ 70°C (With Derating)
Number of Outputs:
1
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 2904610 on website for other similar products.
We accept all major payment methods for all products including ET16912269. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 2904610 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Industrial, DIN Rail Power Supplies category are shipped in lowest possible time.
You will get a confirmation email regarding your order of QUINT4 DIN Rail Panel Mount Power Supply, 240W, 48 → 56V dc/ 5A. You can also check on our website or by contacting our customer support team for further order details on QUINT4 DIN Rail Panel Mount Power Supply, 240W, 48 → 56V dc/ 5A.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16912269 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16912269.
Yes. We ship 2904610 Internationally to many countries around the world.
This is QUINT4 DIN Rail Panel Mount Power Supply 240W 48 → 56V dc/ 5A manufactured by Phoenix Contact. The manufacturer part number is 2904610. The product has +70°c maximum temperature. It has a/an dc output voltage . While its minimum temperature is -25°c. It has ac, dc input voltage. Furthermore, the product is 50mm wide. The MTBF values include >784000h. Its electrical phase configuration includes 1. It comes in switch mode configuration. The product complies with all safety standards, such as abs, bv, din vde 0100-410, dnv gl, en 50178/vde 0160 (pelv), en 60204-1 (pelv), en 61000-3-2, en 61558-2-16, iec 60950-1, iec 60950-1/vde 0805 (selv), lr, prs, ul 60950-1, ul ansi/isa-12.12.01 class i, ul listed ul 508. It is a highly efficient product with an 93.5% of high efficiency. Its input voltage is 100 → 240 v ac / 110 → 250v dc. Additionally, the product is supplied with 1 outputs. Carries 80mv pk-pk ripple and noise. The product is certified with class i division 2 group a, class i division 2 group b, class i division 2 group c, class i division 2 group d hazardous area certification. The product comes in 125mm depth. The product also provides special features, such as dynamic boost with up to 200% for 5 second, high-performance quint power power supplies, monitoring indicates critical operating states before errors occur, nfc interface. The product is available in din rail mount configuration. It carries 5a output current. The product quint4-ps/1ac/48dc/5, is a highly preferred choice for users. In addition, the height is 130mm. Features a 48v dc output voltage. Feature 240w of power rating. It is assigned with possible HTSUS value of 8504.40.9530. The product is rohs3 compliant. It has a 48v output voltage. The product features power and watts of 240w. The maximum product's output current is 5a. It is approved by cb, csa, csaus, cul, culus, curus, eac, tuv, ul. It carries ac or dc input type. The product is widely employed in industrial, ite (commercial), laboratory. In addition, it is reach affected. It has 250v of maximum DC input voltage. It is shipped in bulk package . While the minimum DC input voltage is 110v. Does it require minimum load? no. The product's diameters include 4.92" l x 1.97" w x 5.12" h (125.0mm x 50.0mm x 130.0mm). The product has an AC input voltage range of 100 ~ 240 vac. Its typical moisture sensitivity level is 1 (unlimited). The splendid features of the product include ip20. The product quint, is a highly preferred choice for users. The product has -25°c ~ 70°c (with derating) operating temperature range. The product is designated with the ear99 code number.
