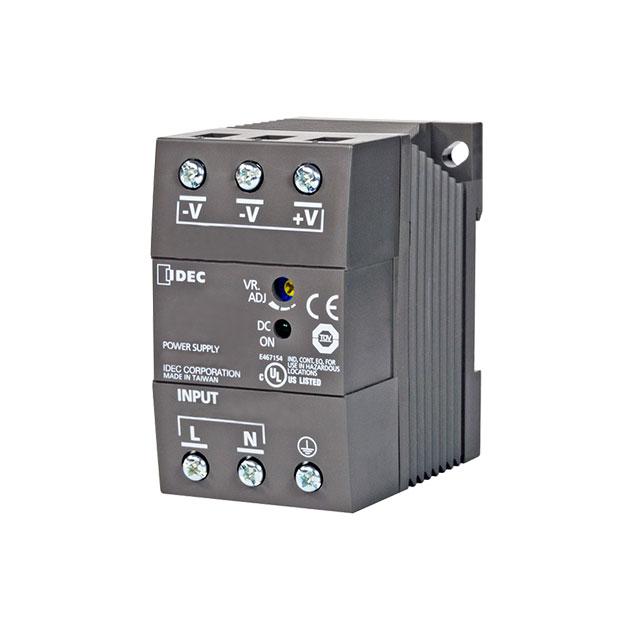

IDEC PS5R-VD24
Product Information
Maximum Temperature:
+70°C
AC or DC Output Voltage:
dc
Minimum Temperature:
-25°C
AC or DC Input Voltage:
ac, dc
Width:
36mm
MTBF:
450000 (Minimum)h
Electrical Phase:
1
Type:
Power Supply
Load Regulation:
1%
Standards Met:
ANSI/ISA, CE:TUV, CSA C22.2 No 107.1.213.223, cULus, EN 50178, EN 60950-1, EN 61204-3, UL 310, UL 508
Efficiency:
86%
Input Voltage:
85 → 264 V ac / 100 → 370V dc
Number of Outputs:
1
Output Voltage Adjustment Range:
±10%
Ripple And Noise:
4% Pk-Pk
Depth:
108mm
Special Features:
Can be Installed in 6 Directions, Compact Size Preserves Panel Space, Five-Year Factory Warranty
Mounting Type:
DIN Rail Mount
Output Current:
2.5A
Series:
PS5R
Height:
95mm
Output Voltage:
24V dc
Power Rating:
60W
HTSUS:
8504.40.9520
RoHS Status:
ROHS3 Compliant
Voltage - Output 1:
24V
Power (Watts):
60W
Current - Output (Max):
2.5A
Approval Agency:
CE, cULus, TUV
Input Type:
AC or DC
Applications:
Hazardous Locations, Industrial, ITE (Commercial)
Voltage - Output 4:
-
Voltage - Output 5:
-
Voltage - Output 6:
-
REACH Status:
REACH Unaffected
Voltage - Output 2:
-
Voltage - Output 3:
-
Efficiency:
86%
DC Voltage - Input (Max):
370V
Package:
Bulk
DC Voltage - Input (Min):
100V
Minimum Load Required:
-
Size / Dimension:
4.25" L x 1.42" W x 3.74" H (108.0mm x 36.0mm x 95.0mm)
standardLeadTime:
26 Weeks
Voltage - Isolation:
3 kV
AC Voltage - Input:
85 ~ 264 VAC
Moisture Sensitivity Level (MSL):
Not Applicable
Features:
Adjustable Output, IP20, Universal Input
Series:
PS5R-V (60W)
Operating Temperature:
-25°C ~ 70°C (With Derating)
Standard Number:
62368-1
Number of Outputs:
1
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search PS5R-VD24 on website for other similar products.
We accept all major payment methods for all products including ET14749165. Please check your shopping cart at the time of order.
You can order IDEC brand products with PS5R-VD24 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Industrial, DIN Rail Power Supplies category are shipped in lowest possible time.
You will get a confirmation email regarding your order of IDEC PS5R-VD24. You can also check on our website or by contacting our customer support team for further order details on IDEC PS5R-VD24.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14749165 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "IDEC" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14749165.
Yes. We ship PS5R-VD24 Internationally to many countries around the world.
This is manufactured by IDEC. The manufacturer part number is PS5R-VD24. The product has +70°c maximum temperature. It has a/an dc output voltage . While its minimum temperature is -25°c. It has ac, dc input voltage. Furthermore, the product is 36mm wide. The MTBF values include 450000 (minimum)h. Its electrical phase configuration includes 1. It comes in power supply configuration. Load Regulation - 1%. The product complies with all safety standards, such as ansi/isa, ce:tuv, csa c22.2 no 107.1.213.223, culus, en 50178, en 60950-1, en 61204-3, ul 310, ul 508. It is a highly efficient product with an 86% of high efficiency. Its input voltage is 85 → 264 v ac / 100 → 370v dc. Additionally, the product is supplied with 1 outputs. It has ±10% of output voltage adjustment range. Carries 4% pk-pk ripple and noise. The product comes in 108mm depth. The product also provides special features, such as can be installed in 6 directions, compact size preserves panel space, five-year factory warranty. The product is available in din rail mount configuration. It carries 2.5a output current. The product ps5r, is a highly preferred choice for users. In addition, the height is 95mm. Features a 24v dc output voltage. Feature 60w of power rating. It is assigned with possible HTSUS value of 8504.40.9520. The product is rohs3 compliant. It has a 24v output voltage. The product features power and watts of 60w. The maximum product's output current is 2.5a. It is approved by ce, culus, tuv. It carries ac or dc input type. The product is widely employed in hazardous locations, industrial, ite (commercial). In addition, it is reach unaffected. It has 370v of maximum DC input voltage. It is shipped in bulk package . While the minimum DC input voltage is 100v. The product's diameters include 4.25" l x 1.42" w x 3.74" h (108.0mm x 36.0mm x 95.0mm). It has a long 26 weeks standard lead time. 3 kv of isolation voltage. The product has an AC input voltage range of 85 ~ 264 vac. Its typical moisture sensitivity level is not applicable. The splendid features of the product include adjustable output, ip20, universal input. The product ps5r-v (60w), is a highly preferred choice for users. The product has -25°c ~ 70°c (with derating) operating temperature range. Standard number include: 62368-1. The product is designated with the ear99 code number.
