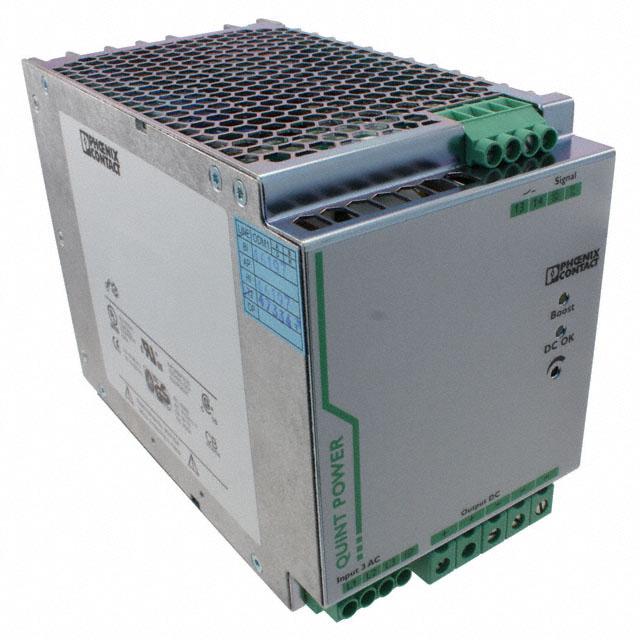

Phoenix Contact 2866802
Product Information
Maximum Temperature:
+70°C
AC or DC Output Voltage:
dc
Minimum Temperature:
-25°C
AC or DC Input Voltage:
ac
Width:
96mm
MTBF:
900000h
Electrical Phase:
3
Type:
Switch Mode
Standards Met:
CE
Efficiency:
>94%
Input Voltage:
400V ac
Number of Outputs:
1
Ripple And Noise:
40mV Pk-Pk
Hazardous Area Certification:
Class I Division 2 Group A, Class I Division 2 Group B, Class I Division 2 Group C, Class I Division 2 Group D
Depth:
130mm
Mounting Type:
DIN Rail Mount
Output Current:
40A
Series:
QUINT-PS/3AC/24DC/40
Height:
130mm
Output Voltage:
24V dc
Power Rating:
960W
HTSUS:
8504.40.6018
RoHS Status:
ROHS3 Compliant
Voltage - Output 1:
24V
Power (Watts):
960W
Current - Output (Max):
40A
Approval Agency:
CB, cULus, cURus
Input Type:
AC or DC
Applications:
ITE (Commercial)
Voltage - Output 4:
-
Voltage - Output 5:
-
Voltage - Output 6:
-
REACH Status:
REACH Affected
Voltage - Output 2:
-
Voltage - Output 3:
-
edacadModel:
2866802 Models
Efficiency:
94%
edacadModelUrl:
/en/models/2417407
DC Voltage - Input (Max):
800V
Package:
Box
DC Voltage - Input (Min):
450V
Minimum Load Required:
No
Size / Dimension:
6.93" L x 3.78" W x 5.12" H (176.0mm x 96.0mm x 130.0mm)
standardLeadTime:
14 Weeks
Voltage - Isolation:
4 kV
AC Voltage - Input:
320 ~ 575 VAC (3 Phase), 360 ~ 575 VAC (2 Phase)
Moisture Sensitivity Level (MSL):
Not Applicable
Features:
Adjustable Output, IP20, Load Sharing, Universal Input
Series:
Quint
Operating Temperature:
-25°C ~ 70°C (With Derating)
Number of Outputs:
1
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 2866802 on website for other similar products.
We accept all major payment methods for all products including ET11197459. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 2866802 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Industrial, DIN Rail Power Supplies category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 2866802. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 2866802.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11197459 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11197459.
Yes. We ship 2866802 Internationally to many countries around the world.
This is manufactured by Phoenix Contact. The manufacturer part number is 2866802. The product has +70°c maximum temperature. It has a/an dc output voltage . While its minimum temperature is -25°c. It has ac input voltage. Furthermore, the product is 96mm wide. The MTBF values include 900000h. Its electrical phase configuration includes 3. It comes in switch mode configuration. The product complies with all safety standards, such as ce. It is a highly efficient product with an >94% of high efficiency. Its input voltage is 400v ac. Additionally, the product is supplied with 1 outputs. Carries 40mv pk-pk ripple and noise. The product is certified with class i division 2 group a, class i division 2 group b, class i division 2 group c, class i division 2 group d hazardous area certification. The product comes in 130mm depth. The product is available in din rail mount configuration. It carries 40a output current. The product quint-ps/3ac/24dc/40, is a highly preferred choice for users. In addition, the height is 130mm. Features a 24v dc output voltage. Feature 960w of power rating. It is assigned with possible HTSUS value of 8504.40.6018. The product is rohs3 compliant. It has a 24v output voltage. The product features power and watts of 960w. The maximum product's output current is 40a. It is approved by cb, culus, curus. It carries ac or dc input type. The product is widely employed in ite (commercial). In addition, it is reach affected. It is a highly efficient product with an 94% of high efficiency. It has 800v of maximum DC input voltage. It is shipped in box package . While the minimum DC input voltage is 450v. Does it require minimum load? no. The product's diameters include 6.93" l x 3.78" w x 5.12" h (176.0mm x 96.0mm x 130.0mm). It has a long 14 weeks standard lead time. 4 kv of isolation voltage. The product has an AC input voltage range of 320 ~ 575 vac (3 phase), 360 ~ 575 vac (2 phase). Its typical moisture sensitivity level is not applicable. The splendid features of the product include adjustable output, ip20, load sharing, universal input. The product quint, is a highly preferred choice for users. The product has -25°c ~ 70°c (with derating) operating temperature range. The product is designated with the ear99 code number.
