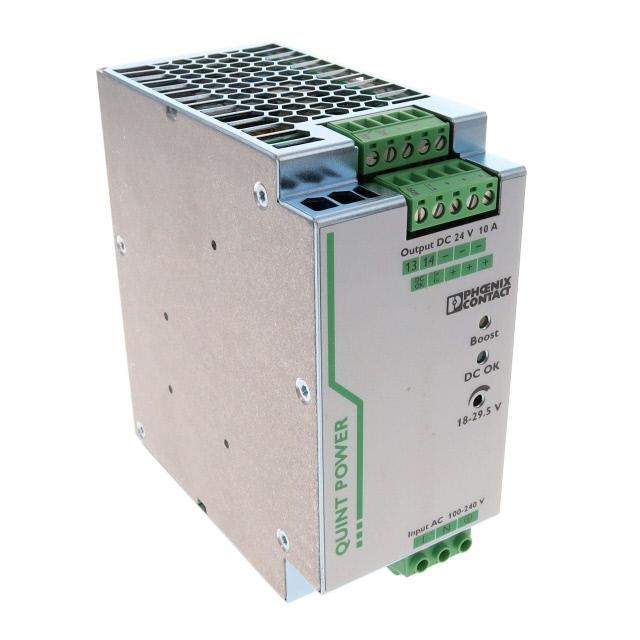

Phoenix Contact 2866763
Product Information
Number of Outputs:
1
Load Regulation:
±1%
AC or DC Output Voltage:
dc
Output Current:
10A
Mounting Type:
DIN Rail Mount
Efficiency:
>92.5%
Maximum Temperature:
+70°C
Series:
QUINT-PS/1AC/24DC/10
Electrical Phase:
1
AC or DC Input Voltage:
ac
Height:
130mm
Width:
60mm
Depth:
130mm
MTBF:
940000h
Output Voltage:
24V dc
Minimum Temperature:
-25°C
Power Rating:
240W
Ripple And Noise:
50mV Pk-Pk
Type:
Switch Mode
Input Voltage:
85 → 264V ac
HTSUS:
8504.40.6018
RoHS Status:
ROHS3 Compliant
Voltage - Output 1:
24V
Power (Watts):
240W
Current - Output (Max):
10A
Approval Agency:
CB, cULus, cURus
Input Type:
AC or DC
Applications:
ITE (Commercial)
Voltage - Output 4:
-
Voltage - Output 5:
-
Voltage - Output 6:
-
REACH Status:
REACH Affected
Voltage - Output 2:
-
Voltage - Output 3:
-
edacadModel:
2866763 Models
Efficiency:
92%
edacadModelUrl:
/en/models/2051166
DC Voltage - Input (Max):
350V
Package:
Box
DC Voltage - Input (Min):
90V
Minimum Load Required:
No
Size / Dimension:
4.92" L x 2.36" W x 5.12" H (125.0mm x 60.0mm x 130.0mm)
standardLeadTime:
14 Weeks
Voltage - Isolation:
4 kV
AC Voltage - Input:
85 ~ 264 VAC
Moisture Sensitivity Level (MSL):
Not Applicable
Features:
Adjustable Output, IP20, Load Sharing, Universal Input
Series:
Quint
Operating Temperature:
-25°C ~ 70°C (With Derating)
Number of Outputs:
1
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 2866763 on website for other similar products.
We accept all major payment methods for all products including ET11103609. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 2866763 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Industrial, DIN Rail Power Supplies category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 2866763. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 2866763.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11103609 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11103609.
Yes. We ship 2866763 Internationally to many countries around the world.
This is manufactured by Phoenix Contact. The manufacturer part number is 2866763. Additionally, the product is supplied with 1 outputs. Load Regulation - ±1%. It has a/an dc output voltage . It carries 10a output current. The product is available in din rail mount configuration. It is a highly efficient product with an >92.5% of high efficiency. The product has +70°c maximum temperature. The product quint-ps/1ac/24dc/10, is a highly preferred choice for users. Its electrical phase configuration includes 1. It has ac input voltage. In addition, the height is 130mm. Furthermore, the product is 60mm wide. The product comes in 130mm depth. The MTBF values include 940000h. Features a 24v dc output voltage. While its minimum temperature is -25°c. Feature 240w of power rating. Carries 50mv pk-pk ripple and noise. It comes in switch mode configuration. Its input voltage is 85 → 264v ac. It is assigned with possible HTSUS value of 8504.40.6018. The product is rohs3 compliant. It has a 24v output voltage. The product features power and watts of 240w. The maximum product's output current is 10a. It is approved by cb, culus, curus. It carries ac or dc input type. The product is widely employed in ite (commercial). In addition, it is reach affected. It is a highly efficient product with an 92% of high efficiency. It has 350v of maximum DC input voltage. It is shipped in box package . While the minimum DC input voltage is 90v. Does it require minimum load? no. The product's diameters include 4.92" l x 2.36" w x 5.12" h (125.0mm x 60.0mm x 130.0mm). It has a long 14 weeks standard lead time. 4 kv of isolation voltage. The product has an AC input voltage range of 85 ~ 264 vac. Its typical moisture sensitivity level is not applicable. The splendid features of the product include adjustable output, ip20, load sharing, universal input. The product quint, is a highly preferred choice for users. The product has -25°c ~ 70°c (with derating) operating temperature range. The product is designated with the ear99 code number.
