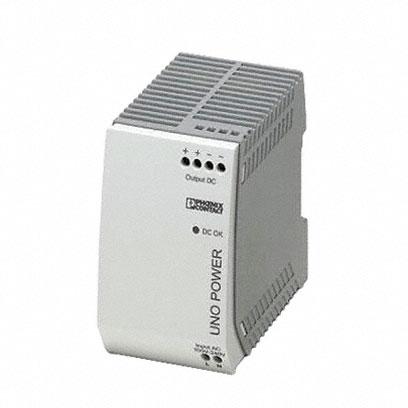

Phoenix Contact 2903002
Product Information
Maximum Temperature:
+70°C
AC or DC Output Voltage:
dc
Minimum Temperature:
-25°C
AC or DC Input Voltage:
ac
Width:
55mm
MTBF:
>500000h
Electrical Phase:
1
Type:
Switch Mode
Standards Met:
CB Scheme, DIN VDE 0100-410, EN 50178/VDE 0160 (PELV), EN 60204-1, EN 60715, EN 60950-1 (SELV) and EN 60204 (PELV), EN 60950-1/VDE 0805 (SELV), EN 61000-3-2, EN 61000-4-11, EN 61000-6-2:2005, EN 61558-2-16, UL Listed UL 508, UL/C-UL Recognized UL 60950
Efficiency:
89%
Input Voltage:
85 → 264V ac
Number of Outputs:
1
Output Voltage Adjustment Range:
±1%
Ripple And Noise:
<75mV Pk-Pk
Depth:
84mm
Special Features:
Maximum Energy Efficiency Thanks to Optimized Efficiency Over the Entire Operating Range of the Power Supply Unit and Low no Load Losses
Mounting Type:
DIN Rail Mount
Output Current:
6.67A
Series:
UNO-PS/1AC/15DC/100W
Height:
90mm
Output Voltage:
15V dc
Power Rating:
100W
HTSUS:
8504.40.6018
RoHS Status:
ROHS3 Compliant
Voltage - Output 1:
15V
Power (Watts):
100W
Current - Output (Max):
6.67A
Approval Agency:
-
Input Type:
AC
Applications:
ITE (Commercial)
Voltage - Output 4:
-
Voltage - Output 5:
-
Voltage - Output 6:
-
REACH Status:
REACH Affected
Voltage - Output 2:
-
Voltage - Output 3:
-
edacadModel:
2903002 Models
Efficiency:
89%
edacadModelUrl:
/en/models/5197286
Package:
Bulk
Minimum Load Required:
-
Size / Dimension:
3.31" L x 2.17" W x 3.54" H (84.0mm x 55.0mm x 90.0mm)
standardLeadTime:
8 Weeks
AC Voltage - Input:
85 ~ 264 VAC
Moisture Sensitivity Level (MSL):
Not Applicable
Features:
IP20, Universal Input
Series:
UNO
Operating Temperature:
-25°C ~ 70°C (With Derating)
Number of Outputs:
1
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 2903002 on website for other similar products.
We accept all major payment methods for all products including ET11092669. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 2903002 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Industrial, DIN Rail Power Supplies category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 2903002. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 2903002.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11092669 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11092669.
Yes. We ship 2903002 Internationally to many countries around the world.
This is manufactured by Phoenix Contact. The manufacturer part number is 2903002. The product has +70°c maximum temperature. It has a/an dc output voltage . While its minimum temperature is -25°c. It has ac input voltage. Furthermore, the product is 55mm wide. The MTBF values include >500000h. Its electrical phase configuration includes 1. It comes in switch mode configuration. The product complies with all safety standards, such as cb scheme, din vde 0100-410, en 50178/vde 0160 (pelv), en 60204-1, en 60715, en 60950-1 (selv) and en 60204 (pelv), en 60950-1/vde 0805 (selv), en 61000-3-2, en 61000-4-11, en 61000-6-2:2005, en 61558-2-16, ul listed ul 508, ul/c-ul recognized ul 60950. It is a highly efficient product with an 89% of high efficiency. Its input voltage is 85 → 264v ac. Additionally, the product is supplied with 1 outputs. It has ±1% of output voltage adjustment range. Carries <75mv pk-pk ripple and noise. The product comes in 84mm depth. The product also provides special features, such as maximum energy efficiency thanks to optimized efficiency over the entire operating range of the power supply unit and low no load losses. The product is available in din rail mount configuration. It carries 6.67a output current. The product uno-ps/1ac/15dc/100w, is a highly preferred choice for users. In addition, the height is 90mm. Features a 15v dc output voltage. Feature 100w of power rating. It is assigned with possible HTSUS value of 8504.40.6018. The product is rohs3 compliant. It has a 15v output voltage. The product features power and watts of 100w. The maximum product's output current is 6.67a. It carries ac input type. The product is widely employed in ite (commercial). In addition, it is reach affected. It is shipped in bulk package . The product's diameters include 3.31" l x 2.17" w x 3.54" h (84.0mm x 55.0mm x 90.0mm). It has a long 8 weeks standard lead time. The product has an AC input voltage range of 85 ~ 264 vac. Its typical moisture sensitivity level is not applicable. The splendid features of the product include ip20, universal input. The product uno, is a highly preferred choice for users. The product has -25°c ~ 70°c (with derating) operating temperature range. The product is designated with the ear99 code number.
