Current Rating:
2A
IP Rating:
IP67
Body Orientation:
Straight
Voltage Rating:
30 V
Coding:
A
Plug/Socket:
Socket
Minimum Operating Temperature:
-25°C
Number of Contacts:
8
Maximum Operating Temperature:
+85°C
Connector Size:
M12
Contact Material:
CuZn
HTSUS:
8536.69.4020
RoHS Status:
ROHS3 Compliant
Convert From (Adapter End):
Female Sockets
Mounting Feature:
Bulkhead - Nut
Orientation (Convert From):
A
Housing Material:
Brass
Operating Temperature:
-25°C ~ 85°C
Number of Positions (Convert From):
8
Housing Finish:
Nickel
Connector Style:
Standard
Shell Size - Insert (Convert To):
M12
Shielding:
Shielded
Number of Positions (Convert To):
8
Voltage Rating:
30V
REACH Status:
REACH Affected
Includes:
3 pcs - 1 Adapter, 1 Nut, 1 O-Ring
Housing Color:
Silver
Material Flammability Rating:
UL94 HB
Shell Size - Insert (Convert From):
M12
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Fastening Type:
Threaded
standardLeadTime:
4 Weeks
Current Rating (Amps):
2A
Ingress Protection:
IP67 - Dust Tight, Waterproof
Features:
-
Mounting Type:
Panel Mount
Series:
SACC
Convert To (Adapter End):
Male Pins
Orientation (Convert To):
A
ECCN:
EAR99

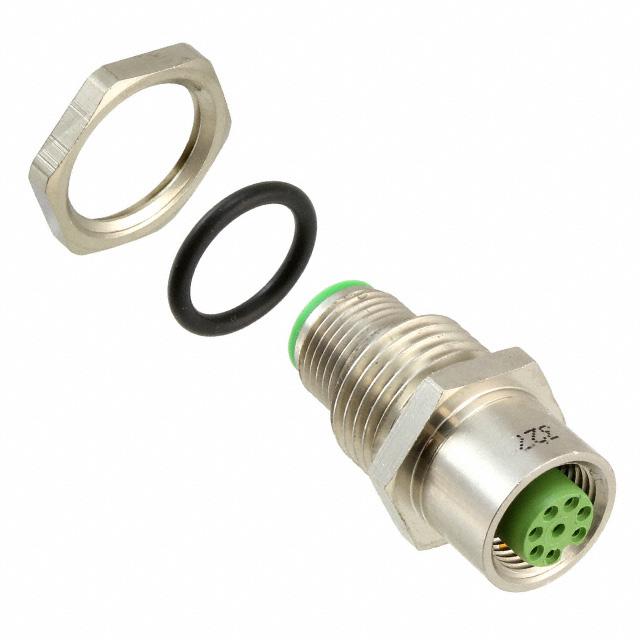

This is manufactured by Phoenix Contact. The manufacturer part number is 1551697. The product has a current rating of 2a. It is IP rated with ip67. It has straight body orientation. Moreover, the product has a nominal 30 v voltage rating. The product is coded with a. It comprises a socket. Whereas, the minimum operating temperature of the product is -25°c. The product contains 8 contacts. It has a maximum operating temperature of +85°c. The connector has m12 size. The product is made from sturdy cuzn materials. It is assigned with possible HTSUS value of 8536.69.4020. The product is rohs3 compliant. It has conversion specifications from female sockets. The product's mounting feature includes bulkhead - nut. Consists a (convert from) orientations. The product also features robust brass housing material. The product has -25°c ~ 85°c operating temperature range. Features 8 positions. The product's housing has finished with a rugged nickel. It comes in standard connector style. On the other the convert to shell's size is m12. Furthermore, the product is shielded with shielded. Includes the number of 8 positions. Moreover, the product has a nominal 30v voltage rating. In addition, it is reach affected. The product is also supplied with 3 pcs - 1 adapter, 1 nut, 1 o-ring. It has an integral silver housing colour. It carries ul94 hb of material flammability rating. Has m12 shell size. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). Furthermore, threaded is the Fastening Type of the product. It has a long 4 weeks standard lead time. Additionally, the product's output is 2a. It is IP rated with ip67 - dust tight, waterproof. The product is available in panel mount configuration. The product sacc, is a highly preferred choice for users. Can effectively be converted to male pins. While consists of a (convert to) orientations. The product is designated with the ear99 code number.
