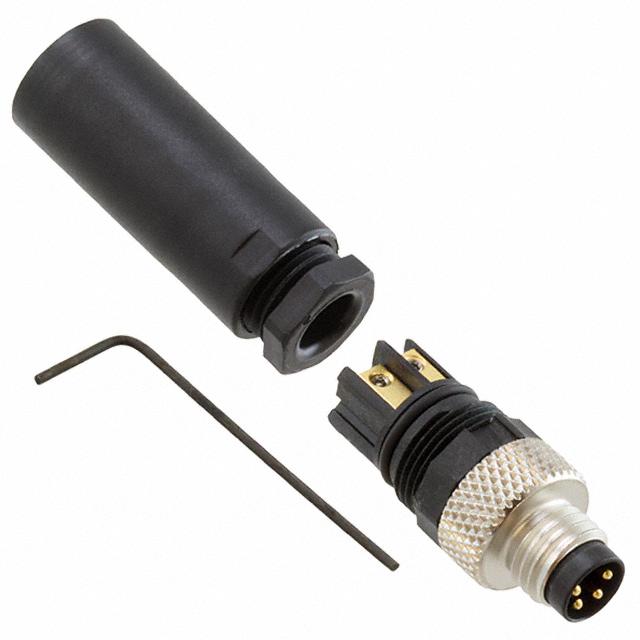

Phoenix Contact 1501265
Product Information
Current Rating:
4A
Mating Type:
A Coded
Mounting Type:
Cable Mount
IP Rating:
IP67
Series:
SACC
Body Orientation:
Straight
Voltage Rating:
30 V
Coding:
A
Contact Gender:
Male
Termination Method:
Screw
Housing Material:
Polymer
Plug/Socket:
Plug
Connector Size:
M8
Contact Plating:
Gold
Shell Size:
M8
Number of Contacts:
4
Maximum Operating Temperature:
+85°C
Minimum Operating Temperature:
-40°C
Contact Material:
Brass (CuZn)
HTSUS:
8536.69.4020
RoHS Status:
ROHS3 Compliant
Voltage Rating:
30VAC/DC
Mounting Feature:
-
Operating Temperature:
-40°C ~ 85°C
Shell Size, MIL:
-
Number of Positions:
4
Contact Finish - Mating:
Gold
Backshell Material, Plating:
Polybutylene Terephthalate (PBT)
Shielding:
-
Cable Opening:
0.138" ~ 0.197" (3.50mm ~ 5.00mm)
Shell Material:
Brass
REACH Status:
REACH Affected
Current Rating (Amps):
4A
Applications:
-
Primary Material:
Metal
Material Flammability Rating:
UL94 HB
Package:
Bulk
Shell Size - Insert:
M8-4
Connector Type:
Plug, Male Pins
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Fastening Type:
Threaded
Termination:
Screw
standardLeadTime:
8 Weeks
Insert Material:
Polyamide (PA), Nylon
Orientation:
A
Ingress Protection:
IP67 - Dust Tight, Waterproof
Features:
Backshell
Mounting Type:
Free Hanging (In-Line)
Shell Finish:
Nickel
Color:
Black, Silver
Series:
SACC
Contact Finish Thickness - Mating:
-
Contact Material:
Copper Zinc
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 1501265 on website for other similar products.
We accept all major payment methods for all products including ET10963885. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 1501265 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Industrial Circular Connectors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 1501265. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 1501265.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET10963885 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET10963885.
Yes. We ship 1501265 Internationally to many countries around the world.
This is manufactured by Phoenix Contact. The manufacturer part number is 1501265. The product has a current rating of 4a. It is a type of a coded mating. The product is available in cable mount configuration. It is IP rated with ip67. The product sacc, is a highly preferred choice for users. It has straight body orientation. Moreover, the product has a nominal 30 v voltage rating. The product is coded with a. This male contact is widely suited for specific applications. It allows screw termination method. The product also features robust polymer housing material. It comprises a plug. The connector has m8 size. The high-quality gold is used as contact plating material. The shell has m8 size. The product contains 4 contacts. It has a maximum operating temperature of +85°c. Whereas, the minimum operating temperature of the product is -40°c. The product is made from sturdy brass (cuzn) materials. It is assigned with possible HTSUS value of 8536.69.4020. The product is rohs3 compliant. Moreover, the product has a nominal 30vac/dc voltage rating. The product has -40°c ~ 85°c operating temperature range. The product carries possible position value of 4. It has nice contact finishing of gold. The product is plated with reliable polybutylene terephthalate (pbt) material. Cable opening features include 0.138" ~ 0.197" (3.50mm ~ 5.00mm). It is made from highly reliable brass materials. In addition, it is reach affected. Additionally, the product's output is 4a. The basic product material is metal. It carries ul94 hb of material flammability rating. It is shipped in bulk package . The insert's size is m8-4. plug, male pins Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, threaded is the Fastening Type of the product. The product features screw termination style. It has a long 8 weeks standard lead time. While it is also supplied with highly stable polyamide (pa), nylon insert material. The product has a a orientation. It is IP rated with ip67 - dust tight, waterproof. The splendid features of the product include backshell. The product is available in free hanging (in-line) configuration. The shell is an excellent finishing of nickel. It has a classic black, silver colour. The product is made from sturdy copper zinc materials. The product is designated with the ear99 code number.
