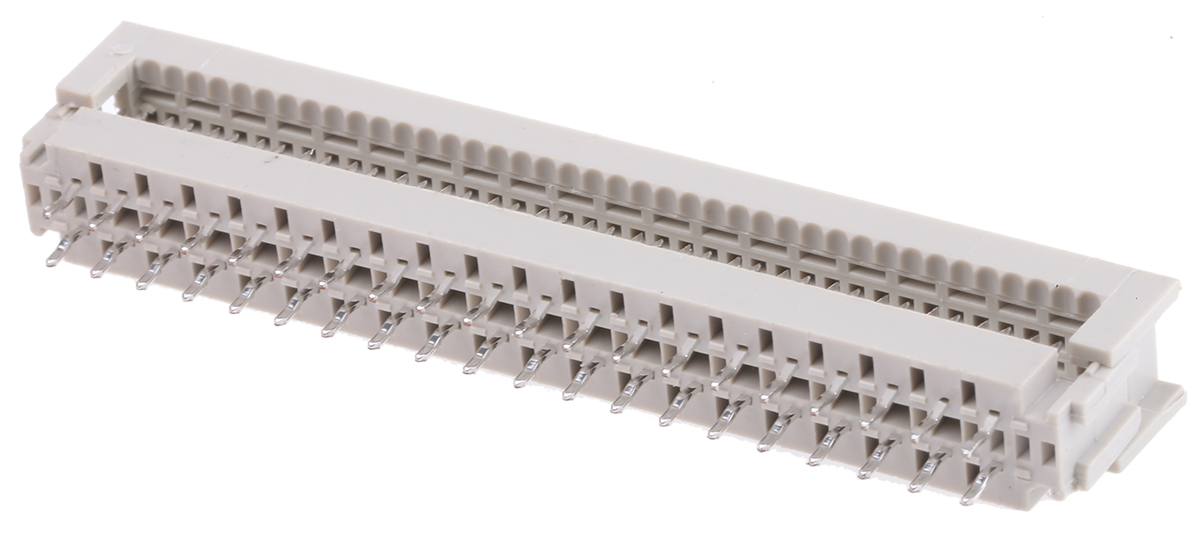

Image is for illustrative purposes only.
Please refer to product description.

manufacturer logo
manufacturer logo

Manufacturer : TE Connectivity
Manufacturer Part No : 4-216791-0
Enrgtech Part No : ET10002087
Product Range : PolySwitch RXEF Series

TE Connectivity AMP-LATCH Series 2.54mm Pitch Right Angle Cable Mount IDC Connector, Male, 40 Way, 2 Row

AMP-Latch 2.54mm PCB IDC DIP Plugs AMP-Latch PCB DIP plugs with contacts on a 2.54 x 2.54 mm centreline for use in wire to board interconnections. These AMP-Latch PCB DIP plug connectors consist of a pre-assembled housing and cover and enable ribbon cable to be connected directly to the PCB without the need for a mating connector. IDC contacts enable these AMP-Latch connectors to produce fast and economical mass terminations without the need for preparing or stripping wire. The housings of these AMP-Latch PCB DIP plug connectors feature mating alignment and polarization features for accurate mating. Part numbers X-216791-X also feature boardlocks for a secure connection to the PCB Features and Benefits • Allows direct connection of cable to PCB • IDC contacts for fast and economical mass terminations • Mating alignment and polarization • Versions with boardlocks Applications These AMP-Latch PCB DIP plugs are suitable for use in a wide range of applications. These applications include computers, electronics, business equipment and medical equipment. TE Connectivity AMP-Latch IDC Ribbon Cable Connectors The AMP-LATCH range of ribbon cable connectors consist of PCB headers and IDC ribbon cable receptacles. This connector system enables reliable gas tight connections to be made between ribbon cable and PCB circuitry allowing one PCB subsystem to be connected to another

Product Information

Current Rating : 1A
Mounting Type : Cable Mount
Gender : Male
Body Orientation : Right Angle
Pitch : 2.54mm
Termination Method : IDC
Housing Material : PET
Number of Rows : 2
Contact Plating : Tin over Nickel
Series : AMP-LATCH
Number of Contacts : 40
rohs : RoHS Certificate of Compliance
Contact Material : Phosphor Bronze

Technical Documents

  • DIP Plug IDC pcb 40 way 2.54mm AmpLatch (Technical Reference)

Availability:
177
in stock
Check now

Rate:
  • 1-24
    +
    £ 2.057
  • 25-74
    +
    £ 1.720
  • 75-199
    +
    £ 1.636

Qty:
