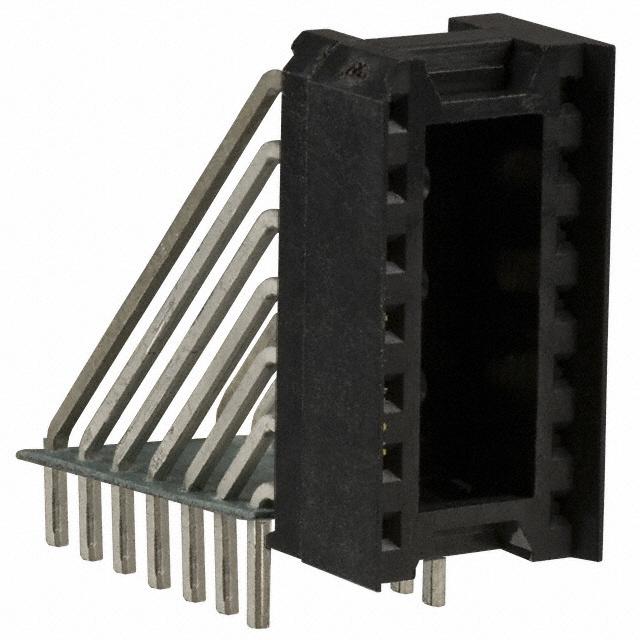

Aries Electronics 14-810-90T
Product Information
Row Width:
7.62mm
Number of Contacts:
14
Current Rating:
1.5A
Orientation:
Right Angle
Mounting Type:
Through Hole
Series:
Vertisocket
Termination Method:
Solder
Housing Material:
Nylon
Width:
19.05mm
Length:
9.91mm
Contact Plating:
Tin over Nickel
Pitch:
2.54mm
Contact Material:
Phosphor Bronze
Maximum Operating Temperature:
+105°C
Frame Type:
Closed Frame
Contact Resistance:
-
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Housing Material:
Polyamide (PA46), Nylon 4/6
Operating Temperature:
-
Number of Positions or Pins (Grid):
14 (2 x 7)
Contact Finish Thickness - Post:
200.0µin (5.08µm)
Contact Material - Mating:
Phosphor Bronze
Type:
DIP, 0.3" (7.62mm) Row Spacing
Contact Finish - Mating:
Tin
REACH Status:
REACH Unaffected
Material Flammability Rating:
UL94 V-0
Contact Material - Post:
Phosphor Bronze
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
standardLeadTime:
7 Weeks
Current Rating (Amps):
1.5 A
Pitch - Mating:
0.100" (2.54mm)
Features:
Closed Frame
Mounting Type:
Through Hole, Right Angle, Vertical
Termination Post Length:
0.145" (3.68mm)
Series:
Vertisockets™ 800
Contact Finish Thickness - Mating:
200.0µin (5.08µm)
ECCN:
EAR99
Base Product Number:
14-810
Pitch - Post:
0.100" (2.54mm)
Checking for live stock
FAQs
Yes. You can also search 14-810-90T on website for other similar products.
We accept all major payment methods for all products including ET12104625. Please check your shopping cart at the time of order.
You can order Aries Electronics brand products with 14-810-90T directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in IC Sockets category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Aries Electronics 14-810-90T. You can also check on our website or by contacting our customer support team for further order details on Aries Electronics 14-810-90T.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET12104625 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Aries Electronics" products on our website by using Enrgtech's Unique Manufacturing Part Number ET12104625.
Yes. We ship 14-810-90T Internationally to many countries around the world.
This is manufactured by Aries Electronics. The manufacturer part number is 14-810-90T. Its row is 7.62mm in width . The product contains 14 contacts. The product has a current rating of 1.5a. The product has a right angle orientation. The product is available in through hole configuration. The product vertisocket, is a highly preferred choice for users. It allows solder termination method. The product also features robust nylon housing material. Furthermore, the product is 19.05mm wide. Its accurate length is 9.91mm. The high-quality tin over nickel is used as contact plating material. Moreover, the product is 2.54mm. The product is made from sturdy phosphor bronze materials. It has a maximum operating temperature of +105°c. The frame is designed as [Fram Type] type. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product also features robust polyamide (pa46), nylon 4/6 housing material. The product is supplied with 14 (2 x 7) positions/pins. Additionally, it features 200.0µin (5.08µm) of post thickness. Its contact is manufactured from highly durable phosphor bronze. It comes in dip, 0.3" (7.62mm) row spacing configuration. It has nice contact finishing of tin. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. The post (contact material) is designed from high stable phosphor bronze. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It has a long 7 weeks standard lead time. Additionally, the product's output is 1.5 a. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include closed frame. The product is available in through hole, right angle, vertical configuration. The termination post is a 0.145" (3.68mm) long. The product vertisockets™ 800, is a highly preferred choice for users. However, 200.0µin (5.08µm) is the "Contact Finish Thickness - Mating" of the product. The product is designated with the ear99 code number. Moreover, it corresponds to 14-810, a base product number of the product. The given pitch of the item is 0.100" (2.54mm).
