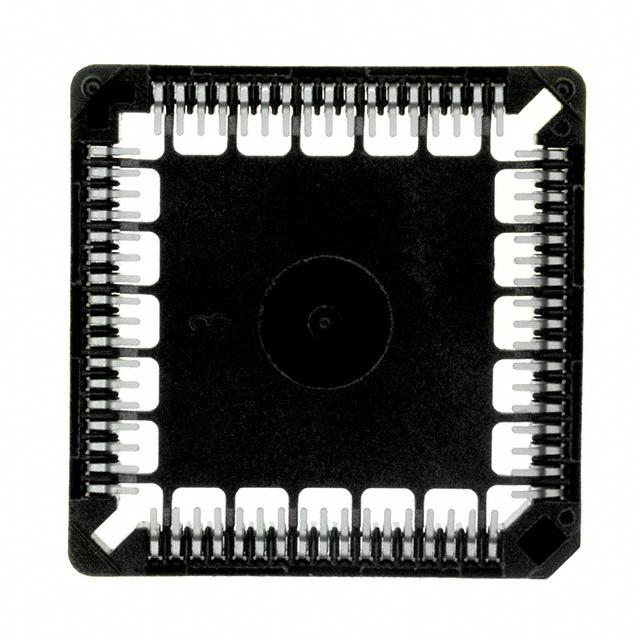

3M 8468-21A1-RK-TP
Product Information
IC Socket Type:
PLCC Socket
Gender:
Female
Body Orientation:
Straight
Termination Method:
Solder
Housing Material:
Glass-Filled PPS
Contact Plating:
Tin over Nickel
Pitch:
1.27mm
Number of Contacts:
68
Contact Material:
Copper Alloy
Contact Resistance:
-
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Housing Material:
Polybutylene Terephthalate (PBT), Glass Filled
Operating Temperature:
-40°C ~ 105°C
Number of Positions or Pins (Grid):
68 (4 x 17)
Contact Finish Thickness - Post:
160.0µin (4.06µm)
Contact Material - Mating:
Copper Alloy
Type:
PLCC
Contact Finish - Mating:
Tin
REACH Status:
REACH Unaffected
edacadModel:
8468-21A1-RK-TP Models
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/1026489
Contact Material - Post:
Copper Alloy
Package:
Tube
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
standardLeadTime:
10 Weeks
Current Rating (Amps):
1 A
Pitch - Mating:
0.050" (1.27mm)
Features:
Closed Frame
Mounting Type:
Surface Mount
Termination Post Length:
0.132" (3.35mm)
Series:
8400
Contact Finish Thickness - Mating:
160.0µin (4.06µm)
ECCN:
EAR99
Base Product Number:
8468
Pitch - Post:
0.050" (1.27mm)
Checking for live stock
FAQs
Yes. You can also search 8468-21A1-RK-TP on website for other similar products.
We accept all major payment methods for all products including ET11565869. Please check your shopping cart at the time of order.
You can order 3M brand products with 8468-21A1-RK-TP directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in IC Sockets category are shipped in lowest possible time.
You will get a confirmation email regarding your order of 3M 8468-21A1-RK-TP. You can also check on our website or by contacting our customer support team for further order details on 3M 8468-21A1-RK-TP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11565869 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "3M" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11565869.
Yes. We ship 8468-21A1-RK-TP Internationally to many countries around the world.
This is manufactured by 3M. The manufacturer part number is 8468-21A1-RK-TP. It has a/an plcc socket type IC socket . In addition, female is the available "Gender" of the product. It has straight body orientation. It allows solder termination method. The product also features robust glass-filled pps housing material. The high-quality tin over nickel is used as contact plating material. Moreover, the product is 1.27mm. The product contains 68 contacts. The product is made from sturdy copper alloy materials. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product also features robust polybutylene terephthalate (pbt), glass filled housing material. The product has -40°c ~ 105°c operating temperature range. The product is supplied with 68 (4 x 17) positions/pins. Additionally, it features 160.0µin (4.06µm) of post thickness. Its contact is manufactured from highly durable copper alloy. It comes in plcc configuration. It has nice contact finishing of tin. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. The post (contact material) is designed from high stable copper alloy. It is shipped in tube package . Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It has a long 10 weeks standard lead time. Additionally, the product's output is 1 a. It has 0.050" (1.27mm) of pitch-mating value. The splendid features of the product include closed frame. The product is available in surface mount configuration. The termination post is a 0.132" (3.35mm) long. The product 8400, is a highly preferred choice for users. However, 160.0µin (4.06µm) is the "Contact Finish Thickness - Mating" of the product. The product is designated with the ear99 code number. Moreover, it corresponds to 8468, a base product number of the product. The given pitch of the item is 0.050" (1.27mm).
