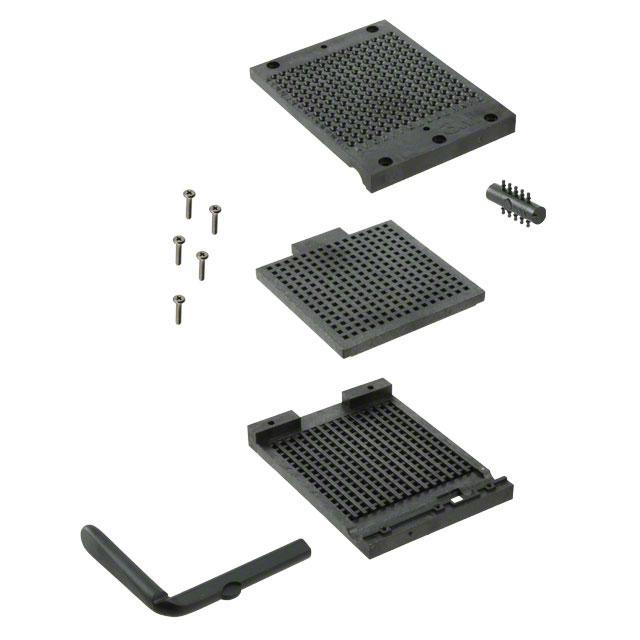

3M 200-6315-9UN-1900

200-6315-9UN-1900 3M
200-6315-9UN-1900
3M

Product Information

Socket Mounting Type:
Through Hole
Package Type:
PGA
Pitch:
2.54mm
Contact Resistance:
-
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Housing Material:
Polyethersulfone (PES)
Operating Temperature:
-55°C ~ 150°C
Number of Positions or Pins (Grid):
225 (15 x 15)
Contact Finish Thickness - Post:
-
Contact Material - Mating:
-
Type:
PGA, ZIF (ZIP)
Contact Finish - Mating:
-
Material Flammability Rating:
UL94 V-0
Contact Material - Post:
-
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
-
Pitch - Mating:
0.100" (2.54mm)
Features:
-
Mounting Type:
-
Termination Post Length:
-
Series:
Textool™
ECCN:
EAR99
Contact Finish Thickness - Mating:
-
Pitch - Post:
0.100" (2.54mm)
Base Product Number:
200
Contact Finish - Post:
-
RoHs Compliant
Checking for live stock

This is manufactured by 3M. The manufacturer part number is 200-6315-9UN-1900. It has a through hole type socket mounting . The package is a sort of pga. Moreover, the product is 2.54mm. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product also features robust polyethersulfone (pes) housing material. The product has -55°c ~ 150°c operating temperature range. The product is supplied with 225 (15 x 15) positions/pins. It comes in pga, zif (zip) configuration. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). It has 0.100" (2.54mm) of pitch-mating value. The product textool™, is a highly preferred choice for users. The product is designated with the ear99 code number. The given pitch of the item is 0.100" (2.54mm). Moreover, it corresponds to 200, a base product number of the product.

pdf icon
PGA ZIF test socket kit,15x15 grid drawing(Technical Reference)
pdf icon
Test & Burn-In PGA Kit Sockets(Technical Reference)
pdf icon
SOIC Socket Pin Sequence(Design Resources)
pdf icon
Txtool™ Burn-In Grid ZIP Sockets(Datasheets)
pdf icon
Test & Burn-In PGA Kit Sockets(Datasheets)
pdf icon
End of Life 01/APR/2022(PCN Obsolescence/ EOL)
pdf icon
Obsolete 29/MAR/2022(PCN Obsolescence/ EOL)
