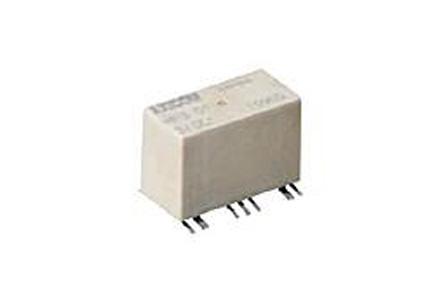

SPDT Surface Mount, High Frequency RF Relay, 3GHz 3V dc
Product Information
Contact Resistance:
100 mΩ
Dimensions:
14.6 x 7.2 x 9.1mm
Coil Voltage:
3V dc
Coil Resistance:
64Ω
Life:
10000000Cycles
Standards Met:
IEC 60068-2-58, IEC 60529, IEC 61810, JEDEC J-Std-020D
VSWR Voltage Standing Wave Ratio:
1.2 @ 3 GHz
Switching Voltage:
220 V dc, 250V ac
Coil Power:
140mW
Impedance:
50Ω
Maximum Operating Temperature:
+85°C
Relay Type:
HF Relay
Operating Temperature Range:
-55 → +85°C
Isolation:
45 dB @ 3GHz
Contact Configuration:
SPDT
Depth:
7.2mm
Relay Switching Classification:
General Purpose Relay
Special Features:
Immersion Cleanable, Low Power Consumption
Insertion Loss:
0.35 dB @ 3 GHz
Mounting Type:
Surface Mount
Maximum Coil Frequency:
3GHz
Operating Time Including Bounce:
3 ms, 5ms
Length:
14.6mm
Height:
9.1mm
Contact Current Rating:
2A
Minimum Operating Temperature:
-55°C
Contact Voltage:
220 V dc, 250V ac
Number of Poles:
1
Contact Material:
Gold
Checking for live stock
FAQs
Yes. You can also search 1462051-1 on website for other similar products.
We accept all major payment methods for all products including ET16715757. Please check your shopping cart at the time of order.
You can order TE Connectivity brand products with 1462051-1 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in HF & RF Relays category are shipped in lowest possible time.
You will get a confirmation email regarding your order of SPDT Surface Mount, High Frequency RF Relay, 3GHz 3V dc. You can also check on our website or by contacting our customer support team for further order details on SPDT Surface Mount, High Frequency RF Relay, 3GHz 3V dc.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16715757 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "TE Connectivity" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16715757.
Yes. We ship 1462051-1 Internationally to many countries around the world.
This is SPDT Surface Mount High Frequency RF Relay 3GHz 3V dc manufactured by TE Connectivity. The manufacturer part number is 1462051-1. It features a 100 mω contact resistance. The given dimensions of the product include 14.6 x 7.2 x 9.1mm. The coil voltage of the product is 3v dc. It holds up to 64ω coil resistance. It is capable of doing 10000000cycles in a lifetime . The product complies with all safety standards, such as iec 60068-2-58, iec 60529, iec 61810, jedec j-std-020d. Additionally, it has 1.2 @ 3 ghz VSWR voltage standing wave ratio . The product's switching voltage is 220 v dc, 250v ac. Robust coil power of 140mw. It has an impedance value of 50ω. It has a maximum operating temperature of +85°c. This is basically a hf relay. The product has -55 → +85°c of operating temperature range. Features a 45 db @ 3ghz isolation. The contact is equipped with spdt configuration. The product comes in 7.2mm depth. It has a general purpose relay switching relay configuration . The product also provides special features, such as immersion cleanable, low power consumption. Allows 0.35 db @ 3 ghz of insertion loss. The product is available in surface mount configuration. With about 3ghz maximum coil frequency . Moreover, the product offers a 3 ms, 5ms operating time including bounce . Its accurate length is 14.6mm. In addition, the height is 9.1mm. The rated contact current is 2a. Whereas, the minimum operating temperature of the product is -55°c. Moreover, it has about 220 v dc, 250v ac contact voltage . It has equipped with 1 poles. The product is made from sturdy gold materials.
