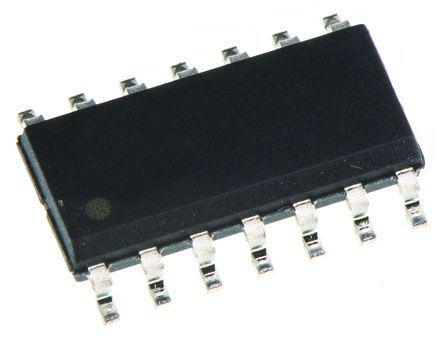

This is Hex TTL CMOS Inverter 2 → 5.5 V 14-Pin SOIC manufactured by ON Semiconductor. The manufacturer part number is MC74LCX04DG. On the other hand, it is featured with 24ma of max. low level output current. While a -24ma of maximum high level output current. It has 5.5 v maximum operating supply voltage. The given dimensions of the product include 8.75 x 4 x 1.5mm. The product is available in surface mount configuration. It provides up to 6 ns @ 50 pf maximum propagation delay time. While its minimum operating supply voltage is 2 v. The primary function of logic includes inverter. Features 50pf of propagation delay test condition. Furthermore, it has attl output. In addition, the height is 1.5mm. Furthermore, the product is 4mm wide. Its accurate length is 8.75mm. The package is a sort of soic. The logic family is lcx. Whereas, the minimum operating temperature of the product is -55 °c. Schmitt Trigger Input - no. It has a maximum operating temperature of +125 °c. It contains 14 pins. It consists of 6 elements per chip.
