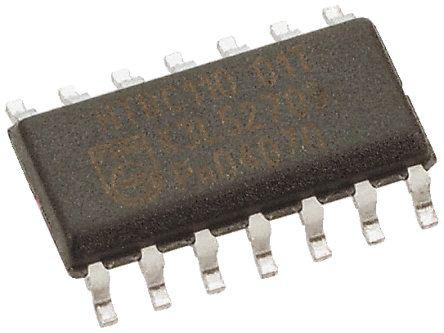

This is Hex Schmitt Trigger Push-Pull Inverter 2 → 5.5 V 14-Pin SOIC manufactured by DiodesZetex. The manufacturer part number is 74AHC14S14-13. The given dimensions of the product include 8.74 x 3.99 x 1.48mm. The logic family is ahc. Furthermore, the product is 3.99mm wide. It carries schmitt trigger input type. On the other hand, it is featured with 8ma of max. low level output current. While a -8ma of maximum high level output current. It provides up to 13.5 ns @ 50 pf maximum propagation delay time. While its minimum operating supply voltage is 2 v. Furthermore, it has apush-pull output. The package is a sort of soic. It consists of 6 elements per chip. It has a maximum operating temperature of +125 °c. Its accurate length is 8.74mm. It contains 14 pins. The product is available in surface mount configuration. It has 5.5 v maximum operating supply voltage. The primary function of logic includes inverter. In addition, the height is 1.48mm. Whereas, the minimum operating temperature of the product is -40 °c. Schmitt Trigger Input - yes. Features 50pf of propagation delay test condition.
For more information please check the datasheets.
