HARTING 09360082632

Enrgtech Part No: ET11766289
|
Manufacturer Part No:
09360082632
|
Manufacturer: HARTING

Product Information

Current Rating:

10A

IP Rating:

IP65

Gender:

Male

Body Orientation:

Straight

Voltage Rating:

120 V

Series:

Han D

Number of Contacts:

Type:

Quick Lock Insert

HTSUS:

8536.69.8000

RoHS Status:

ROHS3 Compliant

Termination Style:

Push In with Lock

Housing Material:

Polycarbonate (PC)

Checking for live stock

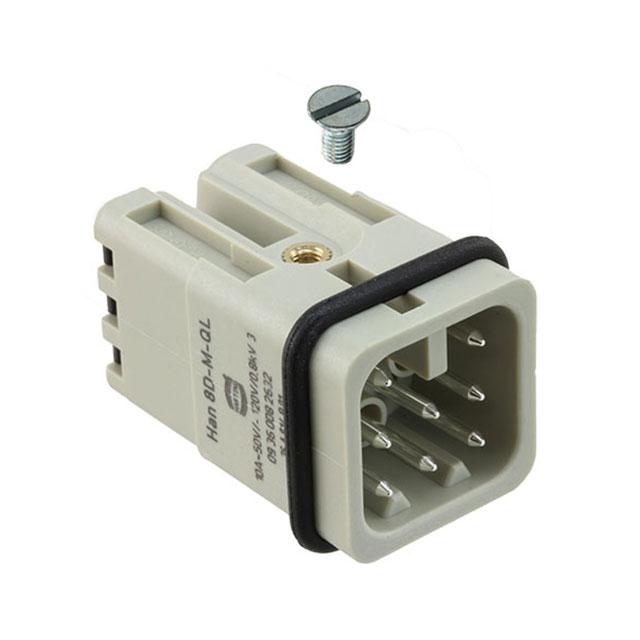

The HARTING 09360082632 is a high-performance male power connector insert designed for use with HARTING’s Han D Series connectors. Rated for 10A, this insert features 8 contacts, providing a robust, reliable connection for industrial power distribution and automation systems. Its heavy-duty construction ensures secure, high-current transmission in harsh environments, making it crucial for applications that require durable and reliable electrical connections.

Salient Features and Benefits of Buying the HARTING Power Connector Insert

Rated for 10A, providing reliable power transmission for industrial use.
8 contacts ensure a secure electrical connection for complex power systems.
Male insert design compatible with Han D Series connectors.
Heavy-duty construction for enhanced durability and performance in harsh environments.
High vibration resistance, ensuring long-term stability and reliability.
Optimised for ease of installation and secure fit in HARTING’s Han D housings.

Engineered for Reliable Performance

This connector insert is designed for demanding industrial applications. Its 8-contact configuration ensures stable and secure connections even in environments subject to frequent vibration or extreme temperatures. The insert's male design provides a robust solution for securely transmitting power in automation systems, control panels, and industrial machinery, minimising downtime and improving operational efficiency.

Broad Range Application

Power distribution systems in industrial machinery and automation setups.
Reliable connection for heavy-duty equipment in manufacturing environments.
Electrical integration in control cabinets and switchgear.
Used in the automotive and transportation industry.
Ideal for large-scale electrical systems.
