Cable Entry Angle:
Top
IP Rating:
IP66
Series:
93601
Sub Type:
STD
Thread Size:
Pg16
Body Material:
Die Cast Aluminium
Standards/Approvals:
ANSI/UL 50, ANSI/UL 50 E, EN 61984, CSA C22.2 No.94-1-2
For Use With:
and S-EHV Inserts, S-D, S-DD, S-E, S-EE, S- EP, S-ES, S-ESHV, S-HSB, Size 6B, S-K, S-M
Number of Levers:
1
Product Type:

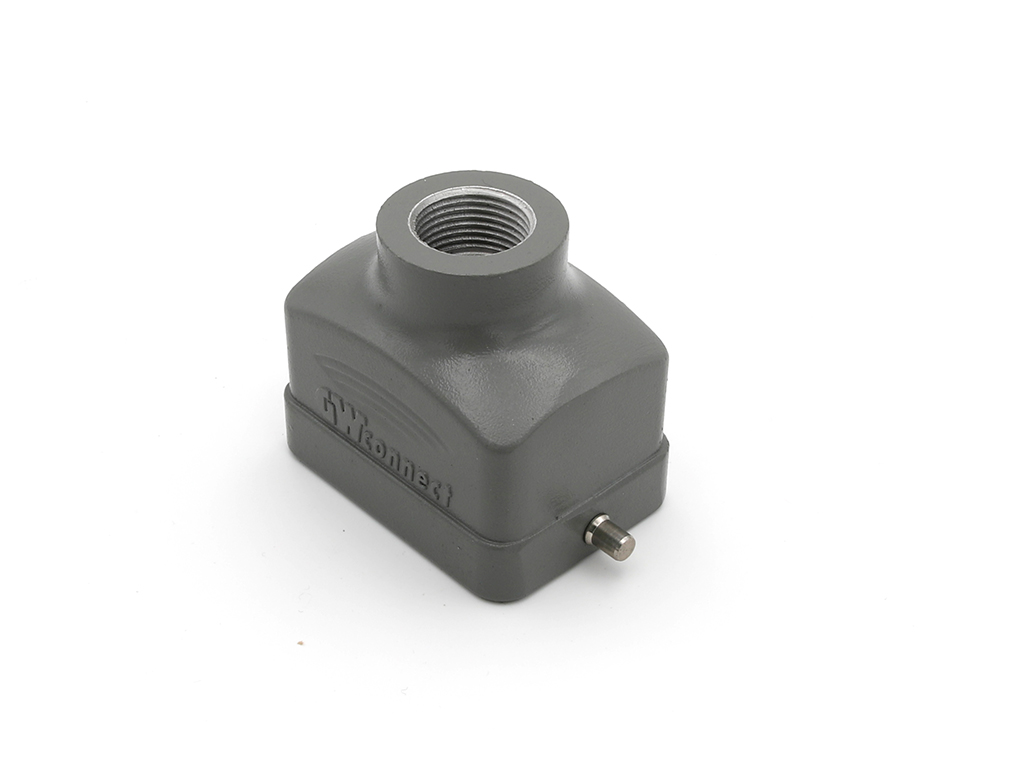

Heavy Duty Power Connector Hood
Style:
Top Entry
HTSUS:
8538.90.8180
RoHS Status:
RoHS non-compliant
Thread Size:
PG16
Operating Temperature:
-40°C ~ 125°C
Moisture Sensitivity Level (MSL):
Vendor Undefined
Housing Finish:
Powder Coated
REACH Status:
REACH info available upon request
Housing Color:
Gray
Package:
Bulk
Connector Type:
Hood
Size / Dimension:
2.370" L x 1.705" W x 2.087" H (60.20mm x 43.30mm x 53.00mm)
Housing Material:
Aluminum, Die Cast
Ingress Protection:
IP66 - Dust Tight, Water Resistant
Features:
-
Series:
GWconnect
Lock Location:
Locking Clip (1) on Base Bottom
Size:
6B
Base Product Number:
093601
ECCN:
EAR99
